Graph Transformations

You should have seen some graph transformations before, such as translations and reflections – recall that reflections in the $x$ -axis flip $f(x)$ vertically and reflections in the $y$ -axis flip $f(x)$ horizontally. Here, we will also look at stretches.

There are 4 main types of graph transformation that we will cover. Each transformation has the same effect on all functions.

Make sure you are happy with the following topics before continuing.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

5

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Type 1: $y = f(x+k)$

For the transformation $y=f(x+k)$ , for $k>0$ :

$f(x+k)$ is $f(x)$ moved $k$ to the left
$f(x-k)$ is $f(x)$ moved $k$ to the right

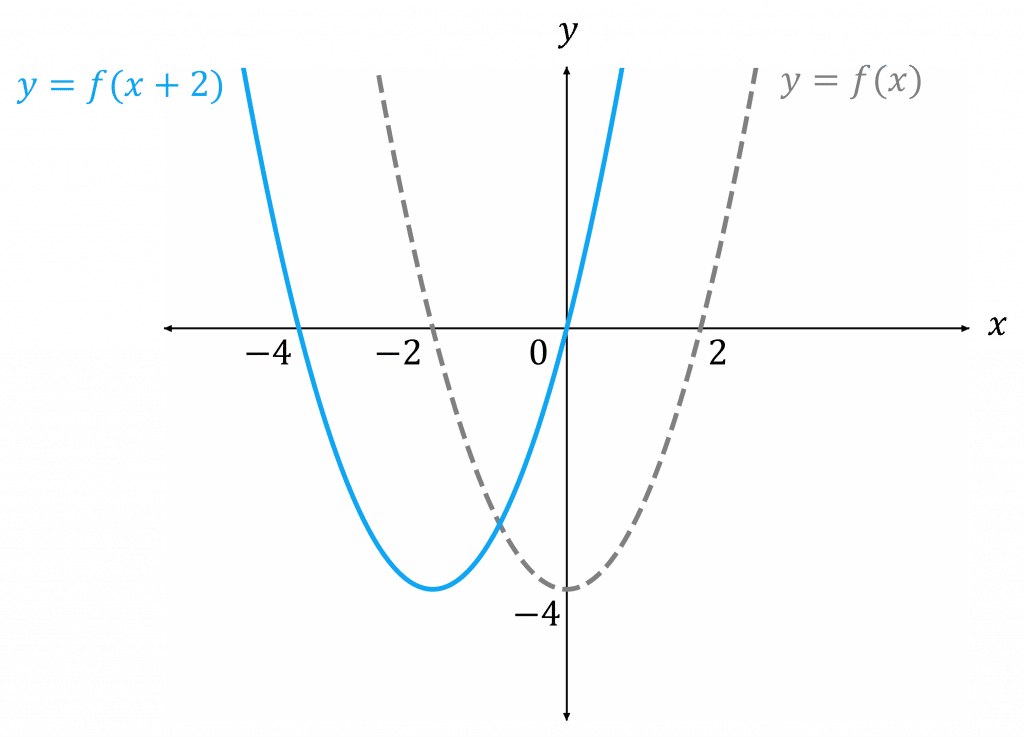

In this example, we have $f(x) = x^2 – 4$ and $y=f(x+2)$

So, subtract $2$ from the $x$ -coordinates of $f(x)$ to get $y=f(x+2)$

Type 2: $y = f(x)+k$

For the transformation $y=f(x)+k$ , for $k>0$ :

$f(x)+k$ is $f(x)$ moved $k$ upwards
$f(x)-k$ is $f(x)$ moved $k$ downwards

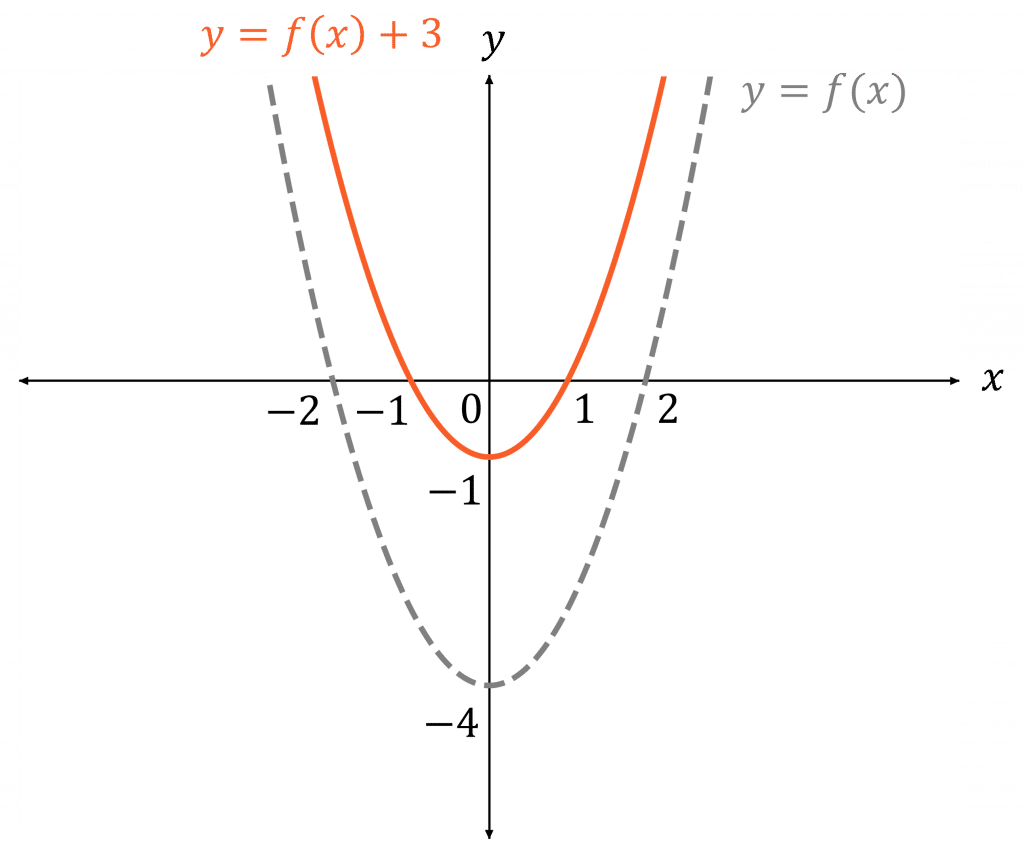

In this example, we have $f(x) = x^2 – 4$ and $y=f(x)+3$

So, add $3$ to the $y$ -coordinates of $f(x)$ to get $y=f(x)+3$

Type 3: $y = af(x)$

For the transformation $y=af(x)$ :

If $|a|>1$ then $af(x)$ is $f(x)$ stretched vertically by a factor of $a$
If $0<|a|<1$ then $f(x)$ is squashed vertically
If $a<0$ then is $f(x)$ also reflected in the $x$ -axis

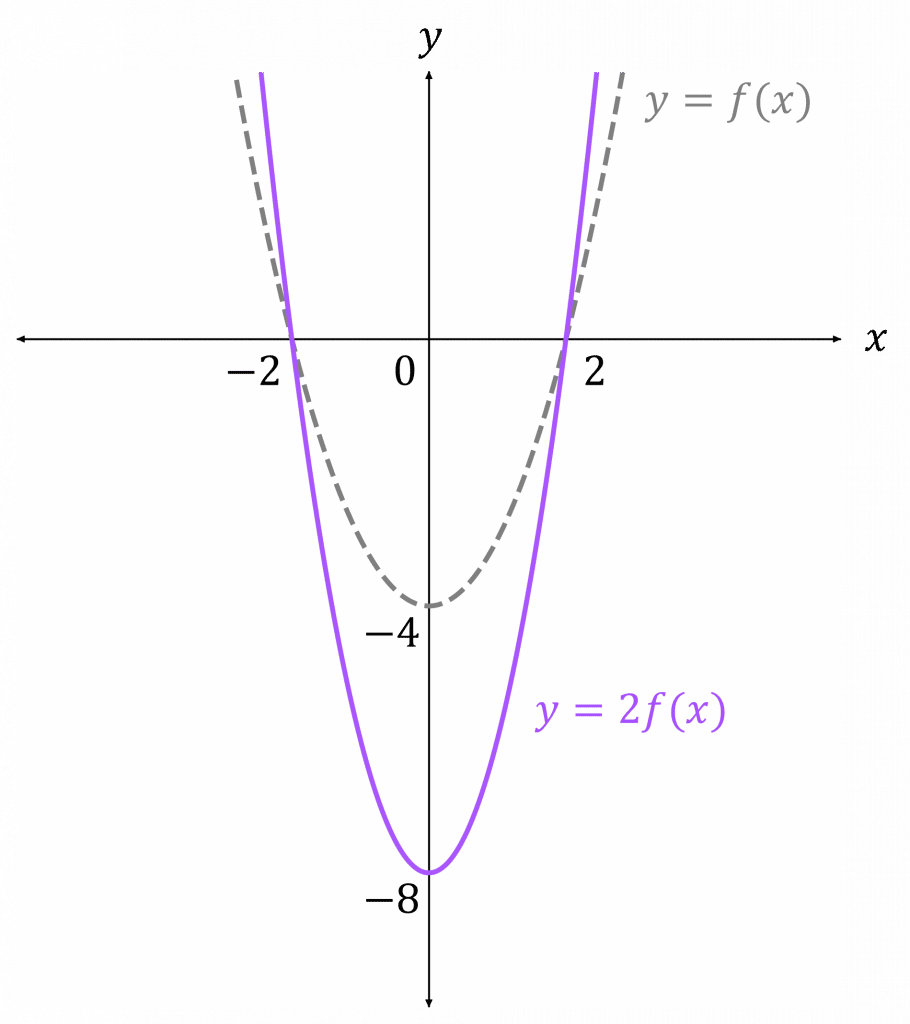

In this example, we have $f(x) = x^2 – 4$ and $y=2f(x)$

This is a stretch vertically, so multiply the $y$ -coordinates of $f(x)$ by $2$ to get $y=2f(x)$

Type 4: $y = f(ax)$

For the transformation $y=f(ax)$ :

If $|a|>1$ then $f(ax)$ is $f(x)$ squashed horizontally by a factor of $a$
If $0<|a|<1$ then $f(x)$ is stretched horizontally
If $a<0$ then is $f(x)$ also reflected in the $y$ -axis

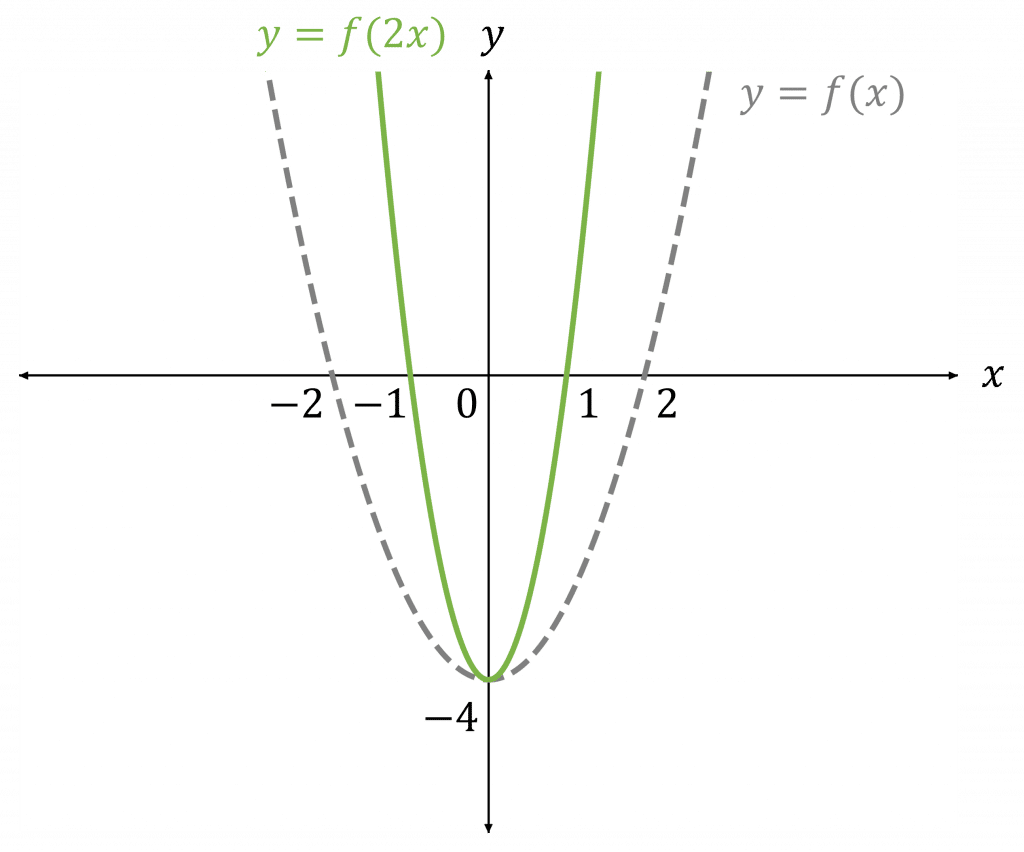

In this example, we have $f(x) = x^2 – 4$ and $y=f(2x)$

This is a squash horizontally, so divide the $x$ -coordinates of $f(x)$ by $2$ (or multiply by $dfrac{1}{2}$ ) to get $y=f(2x)$

            Note:
For these transformations, any asymptotes need to be moved correspondingly.
A squash by a factor of aaa is equivalent to a stretch by a factor of 1adfrac{1}{a}a1​
When drawing graph transformation, only a sketch including important points is necessary.

Combinations of Transformations

For combinations of transformations, it is easy to break them up and do them one step at a time (do the bit in the brackets first). You can sketch the graph at each step to help you visualise the whole transformation.

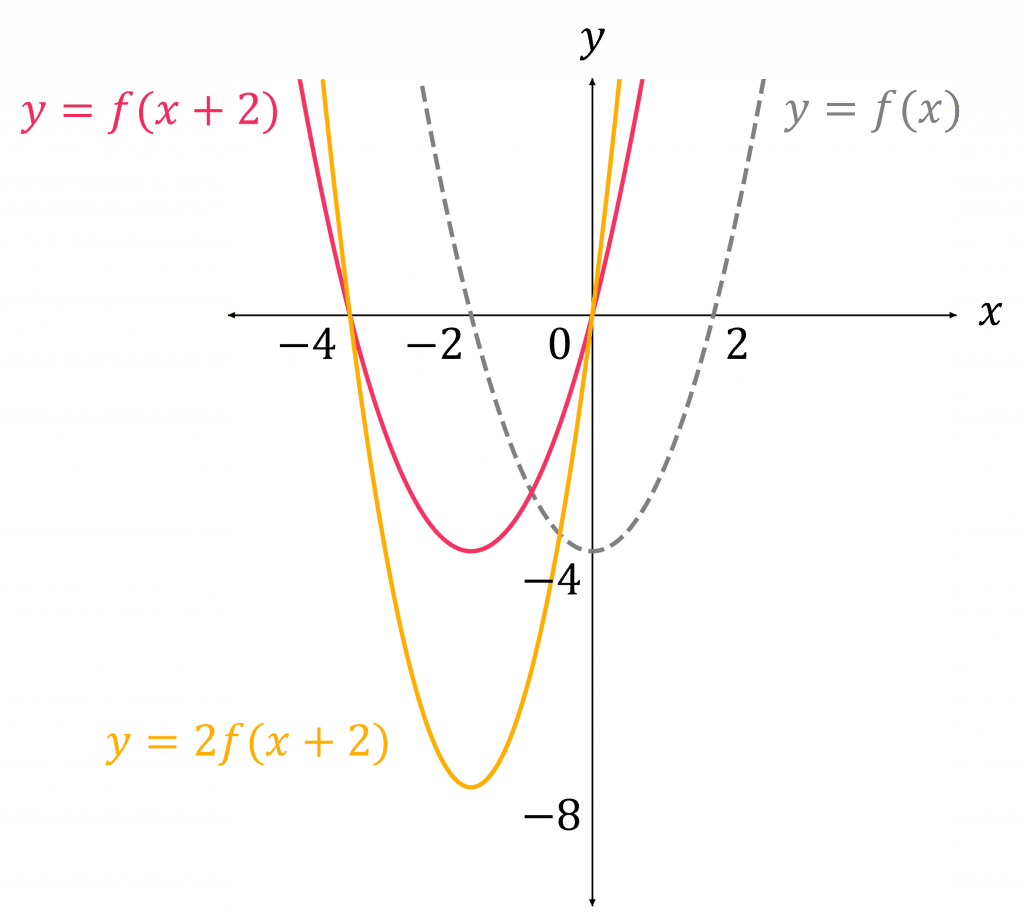

e.g. for $f(x) = x^2 – 4$ and $y=2f(x+2)$ , draw the graph of
$y=f(x+2)$ first, and then use this graph to draw the graph of
$y=2f(x+2)$

Note: These transformations can also be combined with modulus functions.

Graph Transformations Example Questions

Question 1: The function $f(x)$ is shown on the graph below.

Sketch the graph of $y = f(4x)$

[2 marks]

$y = f(4x)$ means that the graph of $f(x)$ is squashed horizontally by a factor of $4$ .

Hence, the graph will look like:

Save your answers with

Gold Standard Education

Sign Up Now

Question 2: The function $f(x)$ is shown on the graph below.

Sketch the graph of $y = – dfrac{1}{2} f(x)$

[3 marks]

Firstly, since the coefficient before $f(x)$ is negative, we need to reflect $f(x)$ in the $x$ -axis.

The coefficient of $dfrac{1}{2}$ before $-f(x)$ means that the graph of $-f(x)$ is squashed vertically by a factor of $2$ .

Hence, the graph will look like:

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: The function $f(x)$ is shown on the graph below.

Sketch the graph of $y = 3f(x) – 1$

[3 marks]

Split the transformation up into $2$ parts – firstly sketch $y=3f(x)$ which is a stretch vertically by a scale factor of $3$ (multiply the $y$ -coordinates by $3$ :
