Locating Roots

Sometimes you won’t be able to algebraically solve $f(x)=0$ , so numerical methods will need to be used to give you solutions which are close to the exact solution.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

5

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Significance of a Change of Sign Between $f(a)$ and $f(b)$

If $f(a)>0$ and $f(b)<0$ then there is a solution to the equation $f(x)=0$ between the values $a$ and $b$ . However, this is only true if the function is continuous between $a$ and $b$ , otherwise if it is not, the change in sign might be caused by something other than a root.

Furthermore, if there isn’t a change in sign between two different values of $x$ , this doesn’t necessarily mean there isn’t a root between these values, as the graph of $f(x)$ could just touch the $x$ -axis between these values.

Example:

$f(x)=x^3-3x^2-2x+3$ , show that $f(x)=0$ has a solution in the interval $-1.2 leq x leq -1.1$

Substitute $x=-1.2$ and $x=-1.1$ into $f(x)$ :

$f(-1.2)=(-1.2)^3-3(-1.2)^2-2(-1.2)+3=-0.648$

$f(-1.1)=(-1.1)^3-3(-1.1)^2-2(-1.1)+3=0.239$

$f(-1.2)$ and $f(-1.1)$ have different signs and $f(x)$ is a continuous function, so there is a solution in the interval $[-1.2,-1.1]$ .

Problems With Large Intervals

When choosing an interval to find roots to an equation, you need to be careful that it is not too large. Large intervals can hide roots if there is an even number of roots in the interval, this is because the sign would change twice within the interval so it would appear to have not changed at all.

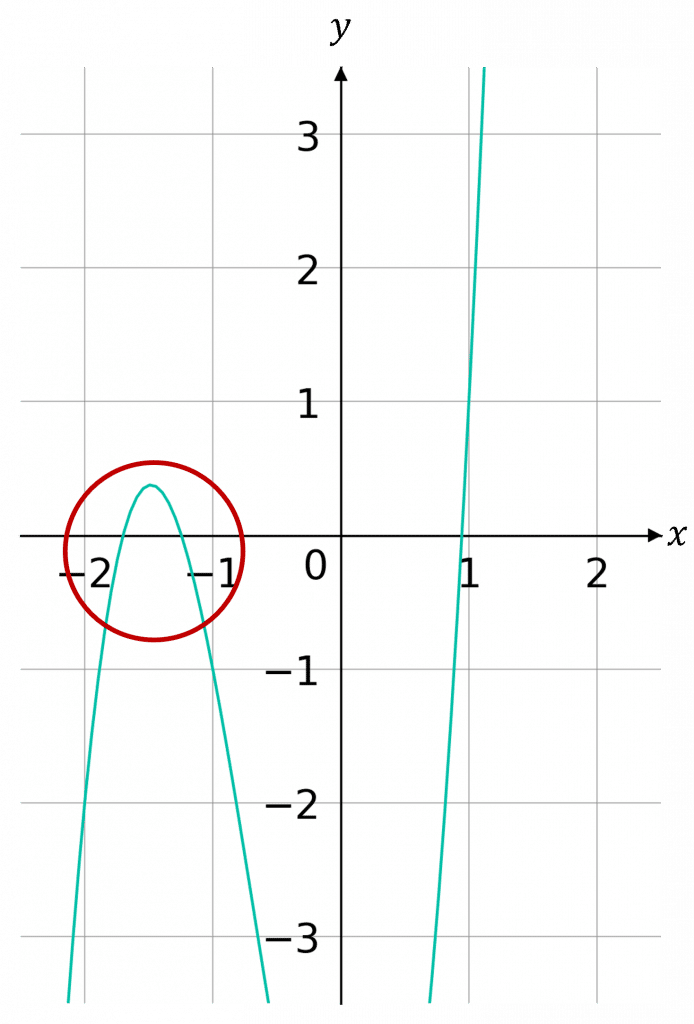

If we were trying to find a root for the graph on the right and chose the interval $[-2,-1]$ it would appear that there isn’t a root between these values. However, as we can see by the graph there is definitely a root between $-2$ and $-1$ , but this wouldn’t be detected by observing the signs of $f(-2)$ and $f(-1)$ , as they would both be negative.

Functions that Aren’t Continuous

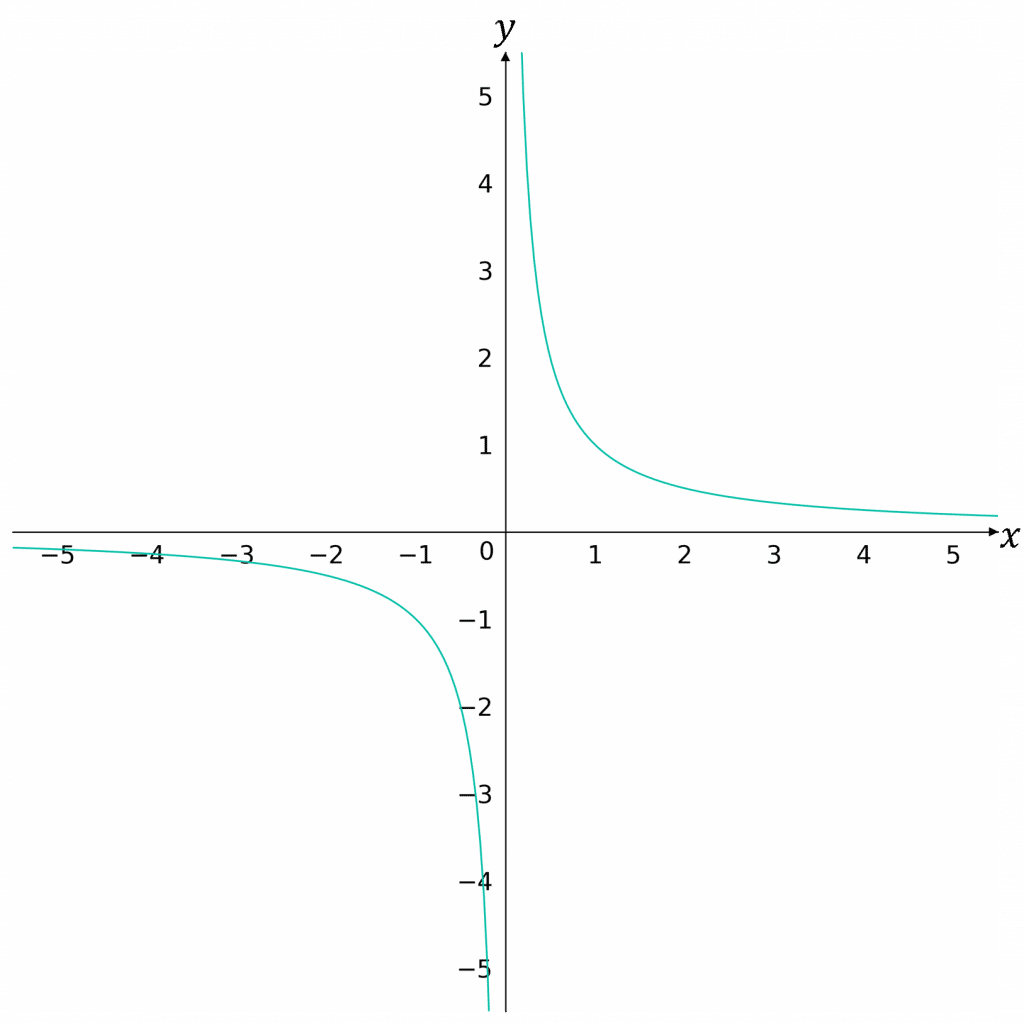

If a function isn’t continuous, like the graph of $y=dfrac{1}{x}$ , there may be sign changes that are not caused by a root.

For example, the graph of $y=dfrac{1}{x}$ changes sign before and after $x=0$ , however this doesn’t mean $x=0$ is a root. This sign change is caused by $y=dfrac{1}{x}$ not being continuous at this point. For this graph, $x=0$ is an asymptote.

Using Upper and Lower Bounds

Sometimes you will be given an approximation to a root and you’ll be asked to show that this root is correct to a certain accuracy.

To do this you need to show that the root lies in a certain interval, choosing the correct interval is key to this.

Example:

Show that $x=0.641$ is a root of the equation $x^3-5x^2-5x+5=0$ to $3$ decimal places.

If $x=0.641$ is a root of the equation $x^3-5x^2-5x+5=0$ to $3$ decimal places, then the exact root, $r$ , must lie in the upper and lower bounds of this value. So $0.6405 leq r < 0.6415$ , as all values in this interval round to our approximate root $0.641$ to $3$ decimal places.
A root lies in the interval $[0.6405,0.6415)$ if $f(0.6405)$ and $f(0.6415)$ have different signs. We know this must be true because $x^3-5x^2-5x+5=0$ is a continuous function.
$f(0.6405)=0.0090576…$ and $f(0.6415)=-0.0011197…$
$f(0.6405)$ and $f(0.6415)$ have different signs so there must be a root between them, and any value between these values round to $0.641$ to $3$ decimal places, so this root is correct.

Locating Roots Example Questions

Question 1: Show that $x=1.594$ is a root of $x^3-2x^2-5x+9=0$ to $3$ decimal places.

[3 marks]

The exact root must lie in the interval $[1.5935,1.5945)$ , because all values in this interval rounds to $1.594$

$f(1.5935)=0.000298025375$

$f(1.5945)=-0.003455466375$

$f(1.5935)$ and $f(1.5945)$ have different signs and $f(x)=x^3-2x^2-5x+9$ is continuous so there must be a root in the interval $[1.5935,1.5945)$ , and all values in this interval round to $1.594$

Save your answers with

Gold Standard Education

Sign Up Now

Question 2: For the following functions show that there is a root in the interval:

a) $(1.6,1.7)$ for $5-e^x=0$

b) $(3.25,3.26)$ for $x^3-2x^2-5x+3=0$

c) $(3.71,3.72)$ for $ln(x-1)-1=0$

[3 marks]

a) $5-e^{1.6}=0.0469675756$

$5-e^{1.7}=-0.4739473917$

So there is a root in the interval $(1.6,1.7)$ due to the sign change and the function being continuous on this interval.

b) $(3.25)^3-2(3.25)^2-5(3.25)+3=-0.046875$

$(3.26)^3-2(3.26)^2-5(3.26)+3=0.090776$

So there is a root in the interval $(3.25,3.26)$ due to the sign change and the function being continuous on this interval.

c) $ln(3.71-1)-1=-0.003051365108$

$ln(3.72-1)-1=0.0006318803079$

So there is a root in the interval $(3.71,3.72)$ due to the sign change and the function being continuous on this interval.

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: The function $f(x)=x^4-5x+1$

Show that $x=1.64$ is a solution to $f(x)=0$ to $2$ decimal places.

[3 marks]

The exact root must lie in the interval $[1.635,1.645)$ , because all values in this interval round to $1.64$

$f(1.635)=-0.02886809937$

$f(1.645)=0.09757130062$

$f(1.635)$ and $f(1.645)$ have different signs and $f(x)=x^4-5x+1$ is continuous so there must be a root in the interval $[1.635,1.645)$ , and all values in this interval round to $1.64$
