Motion Graphs

A LevelAQAEdexcelOCR

Motion Graphs

There are two types of motion graphs: displacement-time graphs and velocity-time graphs.

Displacement-time graphs display the distance from an origin point over a period of time.

Velocity-time graphs display the velocity of a particle over a period of time.

Make sure you are happy with the following topics before continuing.

SUVAT Equations

Displacement-Time Graphs

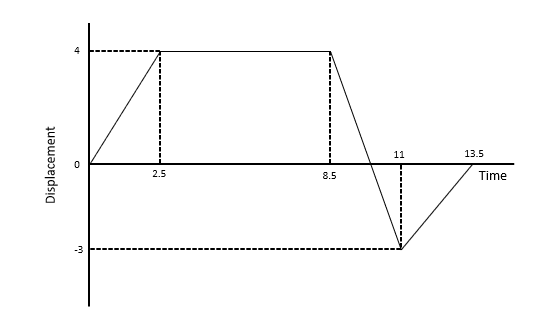

Below is an example of a Displacement-Time graph.

Some key properties about these graphs:

The gradient represents the velocity. A steeper line indicates a greater velocity.
When the line is horizontal, the object is not moving, (i.e. its velocity is $0$ ).

Note:

Be wary of confusing displacement and distance – displacement is a vector quantity involving distance and a direction, distance is purely the distance from the origin, without a specified direction.

Velocity-Time Graphs

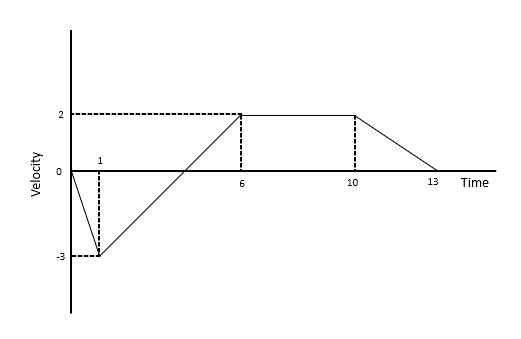

Below is an example of a Velocity-Time graph.

Some key properties about these graphs:

The gradient represents the acceleration. If the graph is increasing, the object is accelerating. If the graph is decreasing, the object is decelerating.
The area under the graph represents the distance travelled.

Note:

Be careful when adding all areas under a VT graph. Remember, if the velocity is negative, the object is heading backwards, so its displacement will decrease, but its distance travelled will increase.

Forming SUVAT Equations from a VT Graph

Here is another example of a VT graph.

We can find details on the graph which represent the SUVAT variables.

For example, we have the initial velocity, $u = -1text{ ms}^{-1}$ , the end velocity, $textcolor{red}{v} = textcolor{red}{4}text{ ms}^{-1}$ and the time taken, $textcolor{purple}{t} = textcolor{purple}{5}text{ seconds}$ . From that information, we can calculate $textcolor{blue}{a}$ and $textcolor{limegreen}{s}$ .

Using $textcolor{red}{v} = u + textcolor{blue}{a}textcolor{purpel}{t}$

we have

$textcolor{red}{4} = -1 + textcolor{purple}{5}textcolor{blue}{a}$

$textcolor{blue}{a} = textcolor{blue}{1}text{ ms}^{-2}$

Using $textcolor{limegreen}{s} = dfrac{1}{2}(u + textcolor{red}{v})textcolor{purple}{t}$ , we have

$textcolor{limegreen}{s} = dfrac{1}{2} times (textcolor{red}{4} – 1) times textcolor{purple}{5}$

$textcolor{limegreen}{s} = textcolor{limegreen}{7.5}text{ m}$

Motion Graphs Example Questions

Question 1: Alex transitions from a slow walk of $1text{ ms}^{-1}$ to a run of $2.22text{ ms}^{-1}$ over $1text{ second}$ . After $30text{ seconds}$ , he slows to a stop in $3text{ seconds}$ . What distance does he run in this time?

[2 marks]

To find the distance, we can find the area of each section under the graph. It can be split into a trapezium, a rectangle and a triangle, so we have

$left( dfrac{1}{2} times (1 + 2.22) times 1right) + (30 times 2.22) + left( dfrac{1}{2} times 3 times 2.22right)$

$= 71.54text{m}$

Save your answers with

Gold Standard Education

Question 2: A train journey from Harrogate to London takes $4text{ hours}$ . At $t = 20text{ minutes}$ , the train stops at Leeds for $10text{ minutes}$ , before stopping at Sheffield, Nottingham and Leicester for $text{two minutes}$ each.

a) For which portion of the journey does the train move fastest?

b) When is it slowest (when not at a station)?

[2 marks]

a) By inspection, we see that the graph is steepest (therefore travelling fastest) between the first and second stop, Leeds to Sheffield.

b) The graph is flattest (therefore travelling slowest) between the fourth and fifth stop, Nottingham to Leicester.

Save your answers with

Gold Standard Education

Question 3: A cyclist is travelling at $15text{ ms}^{-1}$ and accelerates at a constant rate to $25text{ms}^{-1}$ .

Using the graph, calculate her acceleration, and the distance travelled in that time.

[2 marks]

The change in velocity is $10text{ ms}^{-1}$ over $12text{ seconds}$ .

This indicates an acceleration of $dfrac{5}{6}text{ ms}^{-2} = 0.833text{ ms}^{-2}$ .

Using $s = dfrac{1}{2}(u + v)t$ , we have $s = dfrac{1}{2} times 40 times 12 = 240text{ m}$ .

Save your answers with

Gold Standard Education

Additional Resources

Exam Tips Cheat Sheet

A Level

Open

Formula Booklet

A Level

Open

Specification Points Covered

Q2 – Understand, use and interpret graphs in kinematics for motion in a straight line: displacement against time and interpretation of gradient; velocity against time and interpretation of gradient and area under the graph
