Newton-Raphson Method

The Newton-Raphson Method is a different method to find approximate roots. The method requires you to differentiate the equation you’re trying to find a root of, so before revising this topic you may want to look back at differentiation to refresh your mind.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Using the Newton-Raphson Method

Finding roots of an equation in the form $f(x)=0$ , requires you to find $f'(x)$ and then use the following formula:

$Large{x_{n+1}=x_n-dfrac{f(x_n)}{f'(x_n)}}$

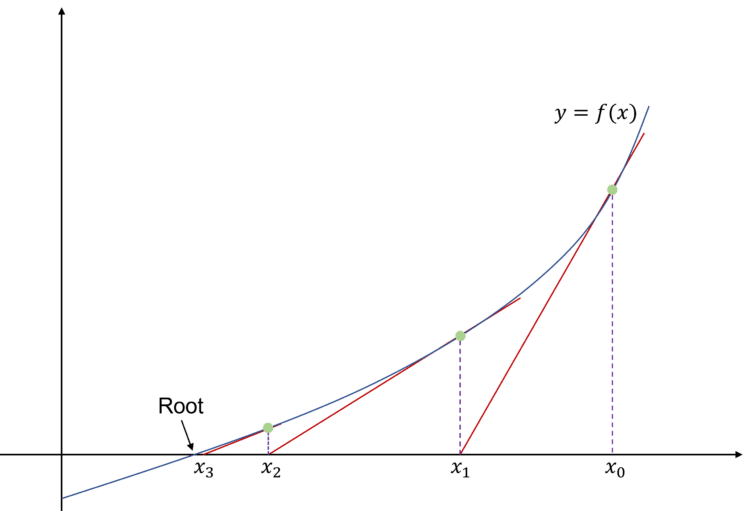

This method iteratively finds the $x$ -intercept of the tangent to the graph of $f(x)$ at $x_n$ and then uses this value as $x_{n+1}$ .

Why the Newton-Raphson Method Can Fail

Similar to other iteration formulas, if your starting point of $x_0$ is too far away from the actual root, the Newton-Raphson method may diverge away from the root.

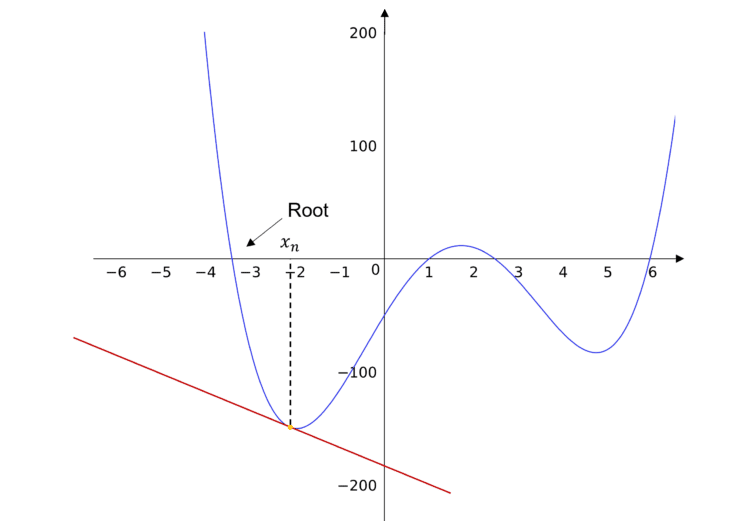

The Newton-Raphson method can also fail if the gradient of the tangent at $x_n$ is close or equal to $textcolor{red}{0}$ . This is shown in the diagram below, where the tangent has a gradient very close to $0$ , so the point where it meets the $x$ -axis will be very far away from the root, so the sequence of iterations may diverge.

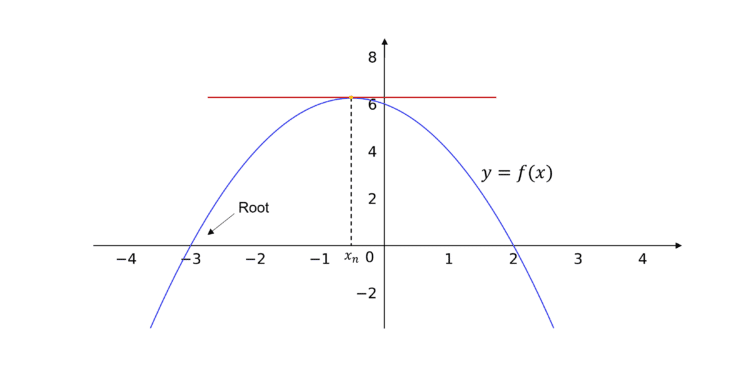

Furthermore, if the tangent at a point on $f(x)$ is horizontal, i.e. $x_n$ is a stationary point, then the Newton-Raphson method will fail. This is because the tangent will never meet the $x$ -axis, so there will be no further iterations. In addition to this, the tangent is horizontal when $f'(x)=0$ , so the formula would not work as you cannot divide by $0$ .

Example: The Newton Raphson Method

Find a root of the equation $x^2-8x+11=0$ to $5$ decimal places using $x_0=6$

First we need to differentiate $f(x)=x^2-8x+11$ :

$f'(x)=2x-8$

Substituting this into the Newton-Raphson formula:

$x_{n+1}=x_n-dfrac{x^2-8x+11}{2x-8}$

Starting with $x_0=6$ :

$x_1=6-dfrac{6^2-8(6)+11}{2(6)-8}=6.25$

Using the formula again to find the following iterations:

$x_2=6.25-dfrac{6.25^2-8(6.25)+11}{2(6.25)-8}=6.236111111$

$x_3=6.236111111-dfrac{6.236111111^2-8(6.236111111)+11}{2(6.236111111)-8}=6.236067978$

$x_4=6.236067978-dfrac{6.236067978^2-8(6.236067978)+11}{2(6.236067978)-8}=6.236067977$

Thus a root of $x^2-8x+11=0$ is $6.23607$ to $5$ decimal places.

Newton-Raphson Method Example Questions

Question 1: Use the Newton-Raphson method with $x_0=1$ , to find a root of the equation $x^3-2x^2-5x+8=0$ to $5$ decimal places.

[4 marks]

Firstly we need to differentiate $f(x)=x^3-2x^2-5x+8$

$f'(x)=3x^2-4x-5$

Now we need to apply the Newton-Raphson formula, starting with $x_0=1$ :

$x_1=1-dfrac{1^3-2(1)^2-5(1)+8}{3(1)^2-4(1)-5}=dfrac{4}{3}$

$x_2=dfrac{4}{3}-dfrac{(dfrac{4}{3})^3-2(dfrac{4}{3})^2-5(dfrac{4}{3})+8}{3(dfrac{4}{3})^2-4(dfrac{4}{3})-5}=1.362962963$

$x_3=1.362962963-dfrac{(1.362962963)^3-2(1.362962963)^2-5(1.362962963)+8}{3(1.362962963)^2-4(1.362962963)-5}=1.36332811$

$x_4=1.36332811-dfrac{(1.36332811)^3-2(1.36332811)^2-5(1.36332811)+8}{3(1.36332811)^2-4(1.36332811)-5}=1.363328238$

So a root of $x^3-2x^2-5x+8=0$ is $1.36333$ to $5$ decimal places.

Save your answers with

Gold Standard Education

Question 2: Use the Newton-Raphson method with $x_0=2$ , to find a root of the equation $3xln{x}=7$ to $4$ significant figures.

[5 marks]

Firstly, we need to rearrange the equation so it is in the form $f(x)=0$ :

$3xln{x}-7=0$

Then we need to differentiate $f(x)=3xln{x}-7$ , to do this we will need to use the product rule:

$begin{aligned} f'(x) &=3ln{x}+3xtimes dfrac{1}{x} &=3ln{x}+3 &=3(ln{x}+1) end{aligned}$

Now we need to apply the Newton-Raphson formula starting with $x_0=2$ :

$x_1=2-dfrac{3(2)ln{2}-7}{3(ln{2}+1)}=2.559336473$

$x_2=2.559336473-dfrac{3(2.559336473)ln{2.559336473}-7}{3(ln{2.559336473}+1)}=2.522322342$

$x_3=2.522322342-dfrac{3(2.522322342)ln{2.522322342}-7}{3(ln{2.522322342}+1)}=2.522182638$

$x_4=2.522182638-dfrac{3(2.522182638)ln{2.522182638}-7}{3(ln{2.522182638}+1)}=2.522182636$

So the root of $3xln{x}=7$ is $2.522$ to $4$ significant figures.

Save your answers with

Gold Standard Education

Question 3: Explain why starting with $x_0=0.5$ for the equation $-x^2+x+12=0$ will fail when using the Newton-Raphson method.

[2 marks]

Differentiating $f(x)=-x^2+x+12$ :

$f'(x)=-2x+1$

Substituting in $x=0.5$ :

$f'(0)=-2(0.5)+1=0$

Thus, the Newton-Raphson method will fail because you cannot divide by $0$

Save your answers with

Gold Standard Education

Additional Resources

Exam Tips Cheat Sheet

A Level

Open

Formula Booklet

A Level

Open

Specification Points Covered

I2 – Solve equations using the Newton-Raphson method and other recurrence relations of the form $x_{n+1}=g(x_{n})$ ; understand how such methods can fail
I4 – Use numerical methods to solve problems in context
