Position Vectors

A position vector describes where a point lies, in relation to the origin, $boldsymbol{O}$

This allows you to write other vectors in terms of position vectors.

Make sure you are happy with the following topics before continuing.

Vector Basics

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

5

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Working with Position Vectors

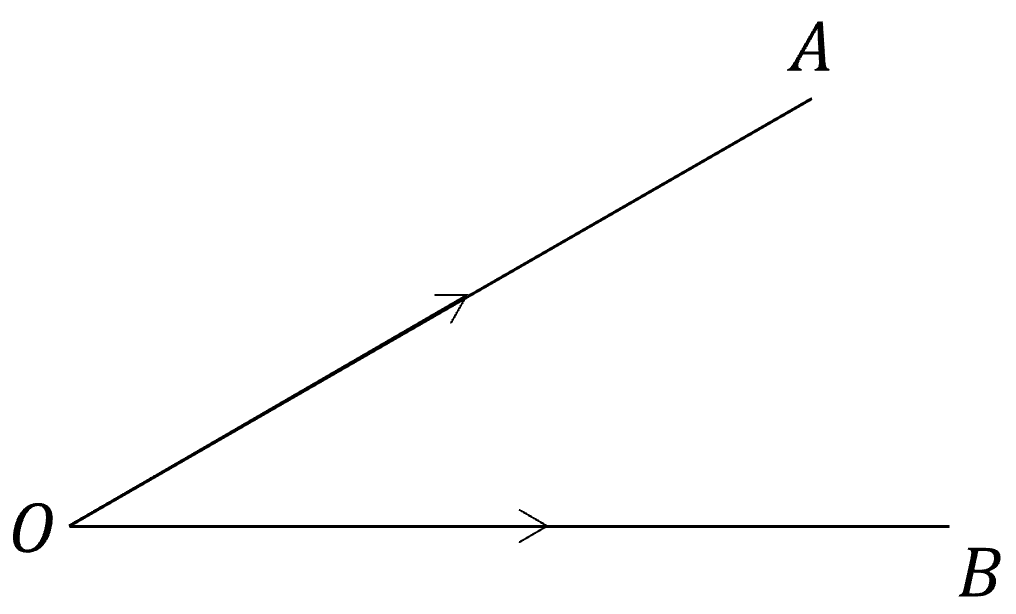

For a point $A$ , the position vector is denoted as $overrightarrow{OA}$

Likewise the point $B$ is denoted as $overrightarrow{OB}$

Writing points as position vectors then allows you to describe vectors between points as position vectors.

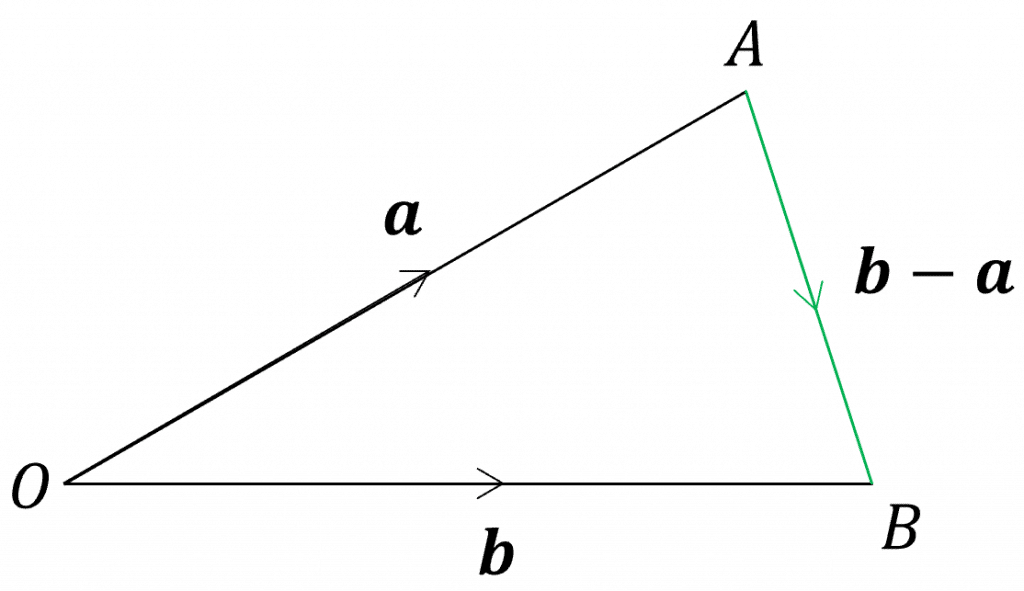

If we let, $boldsymbol{a}=overrightarrow{OA}$ and $boldsymbol{b}=overrightarrow{OB}$

Then, $overrightarrow{AB}=-overrightarrow{OA}+overrightarrow{OB}=-boldsymbol{a}+boldsymbol{b}=boldsymbol{b}-boldsymbol{a}$

Describing vectors using $boldsymbol{i}$ and $boldsymbol{j}$ Units

A vector with a magnitude of $1$ unit is called a unit vector
The standard unit vectors are $boldsymbol{i}$ and $boldsymbol{j}$ , which are in the direction of the $x$ -axis and $y$ -axis respectively.
These standard unit vectors are used to express the horizontal and vertical position of the end of a vector compared to its start point

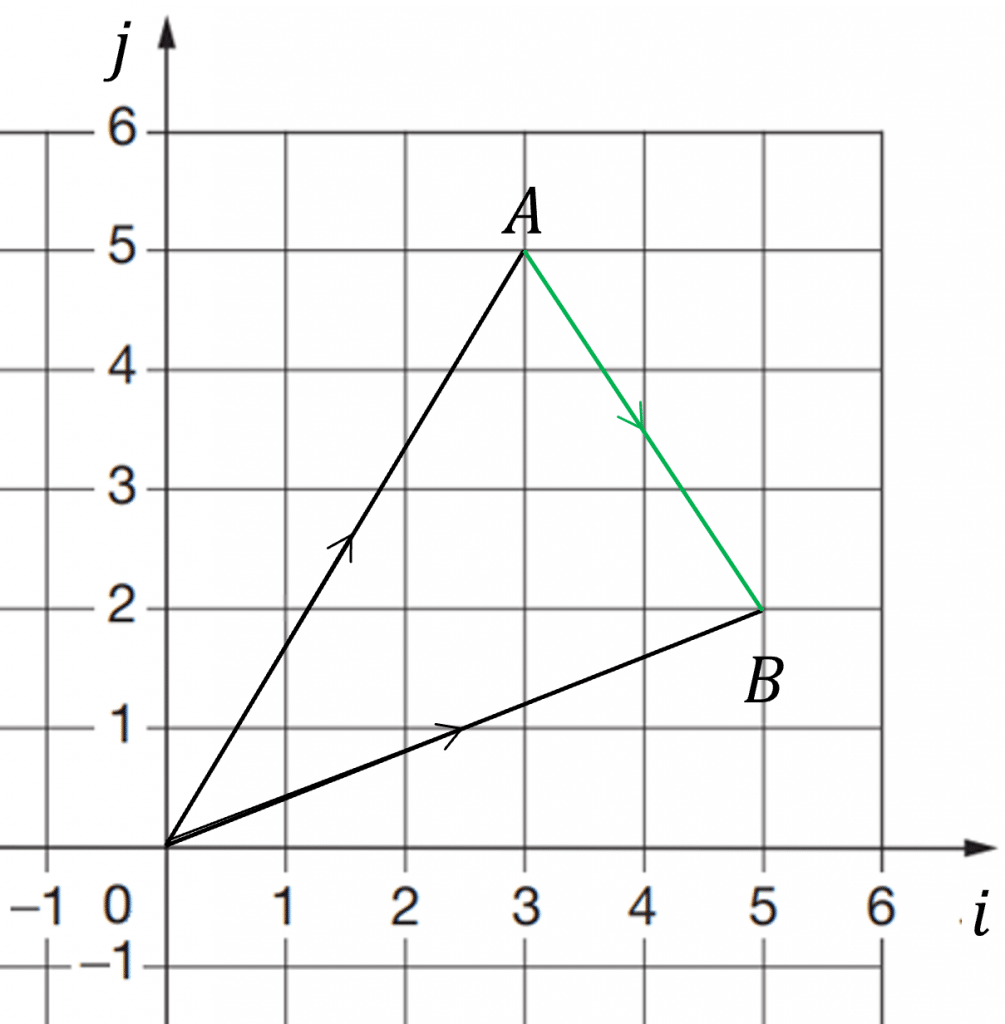

Using the diagram on the right, we can see the position vector of point $A=3boldsymbol{i}+5boldsymbol{j}$ and the position vector of point $B=5boldsymbol{i}+2boldsymbol{j}$

To write $overrightarrow{AB}$ in terms of standard unit vectors, we can just add and subtract the $boldsymbol{i}$ and $boldsymbol{j}$ components of $boldsymbol{a}$ and $boldsymbol{b}$ separately.

Thus the vector $overrightarrow{AB}=-boldsymbol{a}+boldsymbol{b}=-(3boldsymbol{i}+5boldsymbol{j})+(5boldsymbol{i}+2boldsymbol{j})=2boldsymbol{i}-3boldsymbol{j}$

This means that to go from $A$ to $B$ you go $2$ units to the right and $3$ units down.

Column Vectors

Column vectors are another way of expressing vectors.

If $A=4boldsymbol{i}-3boldsymbol{j}$ , then the column vector for $A$ is $dbinom{4}{-3}$

To add and subtract column vectors from one another you simply add or subtract the top row and then add or subtract the bottom row. For example, if $A=dbinom{5}{-2}$ and $B=dbinom{1}{3}$ , then $A+B=dbinom{5+1}{-2+3}=dbinom{6}{1}$

Multiplying a column vector by a scalar is also straight forward, you just need to multiply both the top and bottom numbers by the scalar. For instance, if $C=dbinom{-3}{4}$ , $3C=dbinom{3times-3}{3times4}=dbinom{-9}{12}$

Position Vectors Example Questions

Question 1: Point $K$ has the coordinates $(-1,3)$ .

Give the position vector of point $K$ in:

a) Standard unit vector form

b) Column vector form

[2 marks]

If $A=(x,y)$ , then $A=xboldsymbol{i}+yboldsymbol{j}=dbinom{x}{y}$

So,

a) $K=-boldsymbol{i}+3boldsymbol{j}$

b) $K=dbinom{-1}{3}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 2: $boldsymbol{a}$ has a position vector of $dbinom{7}{-2}$ and $boldsymbol{b}$ has a position vector of $dbinom{-3}{-1}$ , what is $2boldsymbol{a}-4boldsymbol{b}$ ?

Give your answer as a column vector.

[2 marks]

$2boldsymbol{a}-4boldsymbol{b}=dbinom{2times7}{2times-2}-dbinom{4times-3}{4times-1}=dbinom{14}{-4}-dbinom{-12}{-4}=dbinom{14-(-12)}{-4-(-4)}=dbinom{26}{0}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: Points $X$ and $Y$ have position vectors $5boldsymbol{i}-boldsymbol{j}$ and $-3boldsymbol{i}+4boldsymbol{j}$ respectively. Point $Z$ lies on the line $XY$ , such that $XZ:ZY=2:3$ .
