Proportion

A LevelAQAEdexcelOCR

Proportion

Two variables are proportional if as one variable changes, the other variable changes in a specific way. Variables can either be directly proportional or inversely proportional.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Direct Proportion

If two variables are directly proportional, then as one increases, the other increases by the same scale factor (at the same rate). For two variables, say $x$ and $y$ , we can write

$y propto x$

which means “ $y$ is directly proportional to $x$ ” (the $propto$ symbol means proportional).

This expression is equivalent to writing

$y = textcolor{orange}{k}x$

where $textcolor{orange}{k}$ is the constant of proportionality – this tells us how $x$ and $y$ are related to each other.

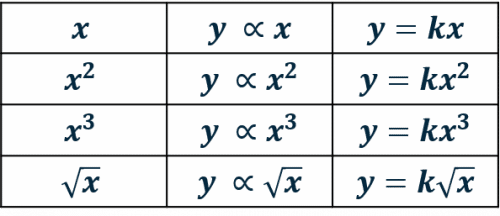

There are other types of direct proportion, such as $y propto x^2$ or $y propto sqrt{x}$ , which can be seen in the table below.

Inverse Proportion

If two variables are inversely proportional, then as one increases, the other decreases by the same scale factor (at the same rate). For two variables, say $x$ and $y$ , we can write

$y propto dfrac{1}{x}$

which means “ $y$ is inversely proportional to $x$ ” or “ $y$ is directly proportional to $dfrac{1}{x}$ ”.

This expression is equivalent to writing

$y = dfrac{textcolor{orange}{k}}{x}$

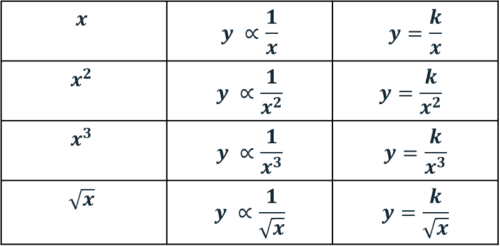

There are other types of inverse proportion, such as $y propto dfrac{1}{x^2}$ or $y propto dfrac{1}{sqrt{x}}$ , which can be seen in the table below.

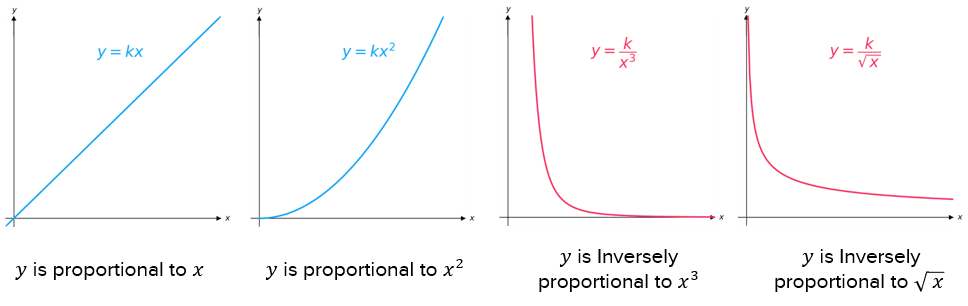

Proportionality Graphs

The equations of direct proportion and inverse proportion can be plotted as graphs:

Example 1: Direct Proportion

If $y$ is directly proportional to $x^2$ and $y=36$ when $x=3$ , find the value of $y$ when $x=5$ .

[3 marks]

Step 1: $y propto x^2$ , so we can write this as an equation involving the constant of proportionality: $y = kx^2$

Step 2: We are given that $y = 36$ and $x = 3$ . Substitute these into the equation above and solve to find $k$ :

$begin{aligned} 36 &= k times 3^2 36 &= 9k textcolor{orange}{k} &textcolor{orange}{= 4} end{aligned}$

Hence, the equation becomes: $y = textcolor{orange}{4}x^2$

Step 3: Find the value of $y$ when $x=5$ by substituting in $x=5$ into the equation:

$y = textcolor{orange}{4} times 5^2 = 100$

Example 2: Inverse Proportion

The density of a solid, $rho text{ kg/m}^3$ , is modelled as being inversely proportional to the volume of the solid, $V text{ m}^3$ .

a) A solid with density $40 text{ kg/m}^3$ has a volume of $0.05 text{ m}^3$ . Find the constant of proportionality.

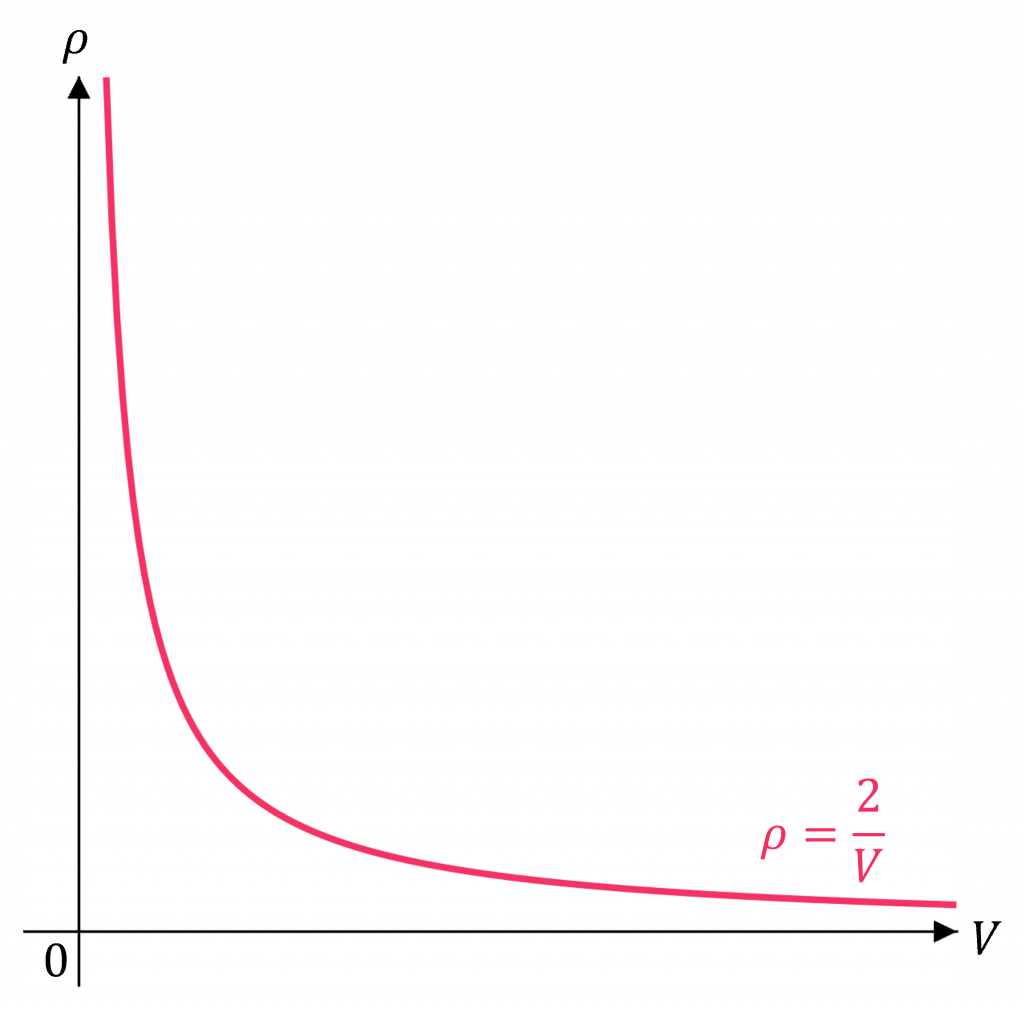

b) Sketch the graph of $rho$ against $V$ .

[4 marks]

a) $rho propto dfrac{1}{V}$ is equivalent to $rho = dfrac{k}{V}$

When $rho = 40$ , $V = 0.05$ , so

$40 = dfrac{k}{0.05} Rightarrow textcolor{orange}{k} = 40 times 0.05 = textcolor{orange}{2}$

b) $rho = dfrac{2}{V}$ is of the form $rho = kV^n$ where $textcolor{orange}{k = 2}$ and $n = -1$ .

The volume cannot be negative, so we only need to sketch the top-right quadrant of the graph.

Note: There will be asymptotes here at $rho = 0$ and $V = 0$ .

Proportion Example Questions

Question 1: If $y$ is inversely proportional to $sqrt{x}$ and $y = 8$ when $x = 9$ , find the value of $x$ when $y = 6$ .

[3 marks]

$y propto dfrac{1}{sqrt{x}}$ , so we can write this as $y = dfrac{k}{sqrt{x}}$

We are given that $y = 8$ , when $x = 9$ , so substitute these into the equation and solve to find $k$ :

$begin{aligned} 8 &= dfrac{k}{sqrt{9}} [1.2em] 8 &= dfrac{k}{3} [1.2em] k &= 24 end{aligned}$

So, the equation is

$y = dfrac{24}{sqrt{x}}$

Then, find the value of $x$ when $y = 6$ , by substituting in $y = 6$ into the equation and solving for $x$ :

$begin{aligned} 6 &= dfrac{24}{sqrt{x}} [1.2em] sqrt{x} &= dfrac{24}{6} [1.2em] sqrt{x} &= 4 [1.2em] x &= 16 end{aligned}$

Save your answers with

Gold Standard Education

Question 2: The kinetic energy, $E text{ J}$ of an object is directly proportional to the velocity of the object, $v text{ m/s}$ , squared.

a) An object travelling at a velocity of $10 text{ m/s}$ has a kinetic energy of $3000 text{ J}$ . Find the constant of proportionality.

b) Find the kinetic energy of the object when it is travelling at a velocity of $4 text{ m/s}$ .

[3 marks]

a) $E propto v^2$ , which can be written as $E=kv^2$

When $v = 10$ , $E = 3000$ , so

$begin{aligned} 3000 &= k times 10^2 3000 &= 100k k &= dfrac{3000}{100} = 30 end{aligned}$

b) $E = 30v^2$

Substitute in $v=4$ into the equation to find the kinetic energy of the object if it is travelling at a velocity $4 text{ m/s}$ :

$E = 30 times 4^2 = 30 times 16 = 480 text{ J}$

Save your answers with

Gold Standard Education

Question 3: The work done by an object, $W text{ Nm}$ , is modelled as being directly proportional to the distance moved by the object, $d text{ m}$ .

a) The work done by an object that is moved by $12 text{ m}$ is $60 text{ Nm}$ . Find the constant of proportionality.

b) Sketch the graph of $W$ against $d$ .

c) Find the work done by the object if it is moved by a distance of $25 text{ m}$ .

[5 marks]

a) $W propto d$ , which is equivalent to $W = kd$ .

When $d = 12$ , $W = 60$ , therefore

$60 = k times 12 Rightarrow k = 60 div 12 = 5$

b) $W = 5d$ will be a straight line passing through the origin. You will only need to sketch the graph in the top right quadrant since distance cannot be negative.

(The gradient of the line is $5$ , but since we are only doing a sketch we do not need to write any values on the axes, so we can just draw any straight line passing through the origin with a positive gradient).

The graph will look like:

c) $W = 5d$

Substitute in $d=25$ into the equation to find the work done by the object if it is moved by $25 text{ m}$ :

$W = 5 times 25 = 125 text{ Nm}$

Save your answers with

Gold Standard Education

Additional Resources

Exam Tips Cheat Sheet

A Level

Open

Formula Booklet

A Level

Open

Specification Points Covered

B7 – Understand and use graphs of functions; sketch curves defined by simple equations including polynomials, the modulus of a linear function.
$y=dfrac{a}{x}$ and $y=dfrac{a}{x^2}$ (including their vertical and horizontal asymptotes);
interpret algebraic solution of equations graphically; use intersection points of graphs to solve equations
Understand and use proportional relationships and their graphs
