Rigid Bodies and Friction

Rigid Bodies

Rigid bodies such as rods interact with walls and surfaces in ways that you might not expect. There are several key facts you need to know for these questions.

Make sure you are happy with the following topics before continuing.

Reactions Can Have Components

If a rod is connected to a plane by a hinge or pivot, and there are forces that are not parallel to the rod acting on the rod, then the reaction force on the rod at the wall will not be perpendicular to the wall. We deal with this by resolving it into parallel and perpendicular components (i.e. components in the direction of the rod and in the direction of the wall).

If the rod is not attached to the wall, but is instead held against the wall by friction, the friction replaces the vertical component of the reaction force, and we only get the component perpendicular to the wall, like usual.

Sometimes, a rod will be positioned against two surfaces (such as a ladder that is on both a floor and a wall – a very common exam question). There could be friction on none, one, or two of the surfaces. The question should indicate which surfaces are rough and which surfaces are smooth.

Questions can also be asked about bodies leaning against surfaces that are neither horizontal nor vertical. As ever, just place the reaction force perpendicular to the surface and the friction force parallel to the surface, and you are good to go.

If a rod has a support that it is resting on along its length, then the reaction force is perpendicular to the rod.

Finally, some questions ask you to find a range for the coefficient of friction, $mu$ . To do this, treat the system as if it were in limiting equilibrium, but when you come to work out the coefficient of friction, replace $F=mu R$ with $Fleqmu R$ .

Example 1: Rod Held by a Pivot

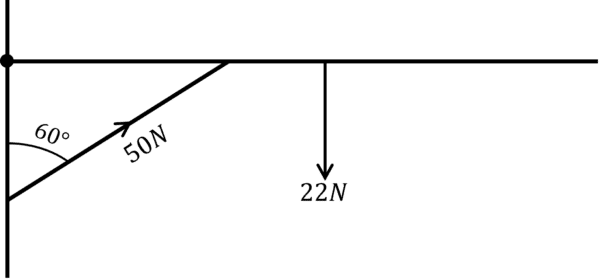

A horizontal rod is held against a vertical wall by a pivot. The weight of the rod is $22text{ N}$ , and it is held by a bar at $60degree$ , providing a tension of $50text{ N}$ . Find the horizontal and vertical components of the reaction force of the rod against the wall.

[4 marks]

First, draw a diagram.

Resolve vertically:

$50cos(60)=R_{v}+22$

$25=R_{v}+22$

$R_{v}=3 text{ N}$

Resolve horizontally:

$50sin(60)=R_{h}$

$R_{h}=25sqrt{3}$

$R_{h}=43.3 text{ N}$

Example 2: Ladder

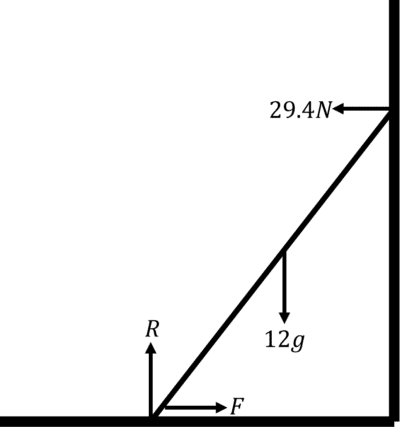

A ladder is stood upon a rough horizontal floor and leaning against a smooth vertical wall. Given that it has a mass of $12text{ kg}$ , and the reaction force from the vertical wall is $29.4text{ N}$ , find the coefficient of friction of the floor.

[3 marks]

First draw a diagram.

Resolve vertically:

$R=12g$

Resolve horizontally:

$F=29.4text{ N}$

$F leq mu R$

$29.4 leq 12gmu$

$29.4 leq 117.6mu$

$mugeq dfrac{29.4}{117.6}$

$mu geq 0.25$

Rigid Bodies and Friction Example Questions

Question 1: A $30text{ cm}$ shelf is propped up by a support beam, as below. Given that the support beam can supply a maximum of $300text{ N}$ , could the shelf support two $text{7.5 kg}$ trophies at distances $15text{ cm}$ and $25text{ cm}$ ?

Also, calculate the horizontal and vertical reaction forces at the point where the shelf meets the wall.

Assume that the shelf is weightless.

[6 marks]

Take the moment about the point where the shelf meets the wall.

Clockwise: $(0.15 times 7.5 times 9.8) + (0.25 times 7.5 times 9.8) = 0.4 times 7.5 times 9.8 = 29.4text{ Nm}$

Anticlockwise: The maximum perpendicular force is $0.15 times 300cos 30° = 38.97text{ Nm (to } 2text{ dp)}$

The force from the support beam exceeds the force from the trophies, so the shelf will stay up.

For the entire system, vertically:

$R_{Vwall} + T_{1}cos 30° = 2 times 7.5 times 9.8 = 147$

Since we know that

$T_{1} = dfrac{29.4}{0.15cos 30°} = 226.3$ , we have $R_{Vwall} = -49text{ N}$

so this reactionary force acts downwards at the wall.

For the entire system, horizontally:

$R_{Hwall} = T_1 sin 30° = 113.16text{ N}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 2: An art piece can be modelled as a uniform rod weighing $5text{ kg}$ , held up by two large, weightless pipes.

Given that the piece is in equilibrium, find $T_1$ and $T_2$ , using the moments technique.

[4 marks]

Resolving horizontally, we have

$T_1cos 26.6 = T_2cos 58$

Rearrange this to get

$T_1 = T_2dfrac{cos 58}{cos 26.6}$

Using moments about the left end of the rod:

Clockwise: $2.5 times 5 times 9.8 = 122.5text{ Nm}$

Anticlockwise: $T_1sin 26.6 + 4.5T_2sin 58$

$122.5 = T_1sin 26.6 + 4.5T_2sin 58$

$122.5 = (T_2 times tan 26.6 times cos 58) + (4.5T_2sin 58)$

$T_2 = dfrac{122.5}{(tan 26.6 times cos 58) + 4.5sin 58} = 30.01text{ N}$

$T_1 = 17.79text{ N}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: Consider a ladder placed on a rough floor, at an angle of $60degree$ to the horizontal. The ladder rests on a vertical wall, and the coefficient of friction of both the floor and the wall is $0.5$ . The ladder has a mass of $20text{ kg}$ , which is evenly distributed across its $1text{ m}$ length. By taking moments about the base, or otherwise, find the reaction forces from both the floor and the wall.
