Sine & Cosine Rules

The two rules work for any triangle at all – not just the right angled ones we’d use usual trigonometry for.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

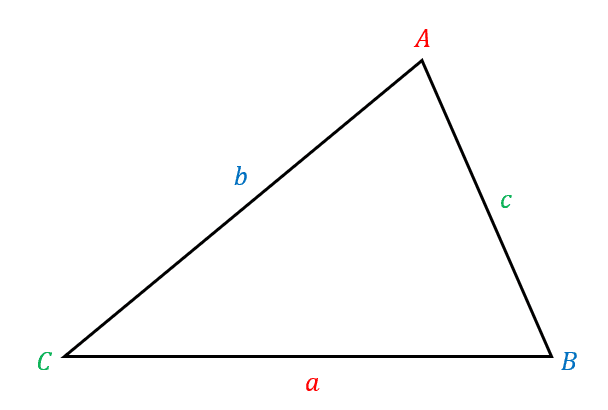

Here’s the triangle we’ll be referencing from in this section.

Sine Rule

Use the Sine Rule when you know the values of two angles and one side length, and want to figure out the length of another side.

The rule is

$dfrac{textcolor{red}{a}}{sin textcolor{red}{A}} = dfrac{textcolor{blue}{b}}{sin textcolor{blue}{B}} = dfrac{textcolor{limegreen}{c}}{sin textcolor{limegreen}{C}}$

Cosine Rule

We’ll use this rule when we know two side lengths and the angle in between. We might also use it when we know all three side lengths.

The rule is

$textcolor{red}{a}^2 = textcolor{blue}{b}^2 + textcolor{limegreen}{c}^2 – 2textcolor{blue}{b}textcolor{limegreen}{c}cos textcolor{red}{A}$

Area of Any Triangle

This formula can be used for any pair of sides where the angle in between is also known.

The formula is

$text{Area} = dfrac{1}{2}textcolor{red}{a}textcolor{blue}{b}sin textcolor{limegreen}{C}$

Note:

If we have two sides and an angle that doesn’t lie in between, we have a bit of a problem.

We’d need to find a little more information out about the system, typically by inspecting the surrounding system.

Example: Application

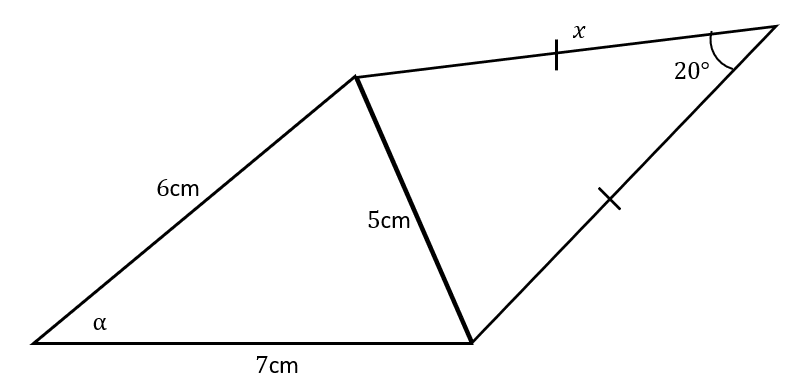

Here’s a system of two triangles attached at the side of length $textcolor{red}{5}text{ cm}$ .

Find values for $x$ and $alpha$ .

[4 marks]

First, let’s solve for $x$ .

Since we know the top triangle is isosceles, the two angles we don’t know yet are equal. Given that the total of angles in the triangle are $180°$ , we have these two angles as $80°$ each.

From there

$dfrac{textcolor{red}{5}}{sin 20°} = dfrac{x}{sin 80°}$

$x = dfrac{textcolor{red}{5}sin 80°}{sin 20°} = 14.40text{ cm (to } 2 text{ dp)}$

Now, to solve for $alpha$ .

$textcolor{red}{5}^2 = textcolor{blue}{6}^2 + textcolor{limegreen}{7}^2 – (2 times textcolor{blue}{6} times textcolor{limegreen}{7} times cos textcolor{red}{alpha})$

$textcolor{red}{25} = textcolor{blue}{36} + textcolor{limegreen}{49} – 84cos textcolor{red}{alpha}$

$textcolor{red}{alpha} = cos ^{-1}left( dfrac{textcolor{red}{25} – (textcolor{blue}{36} + textcolor{limegreen}{49})}{-84}right) = 44.42°$

Sine & Cosine Rules Example Questions

Question 1: Use the cosine rule to find the value of $alpha$ .

[3 marks]

$a^2 = b^2 + c^2 – 2bccos A$

gives

$cos A = dfrac{b^2 + c^2 – a^2}{2bc}$

$A = cos ^{-1}left( dfrac{b^2 + c^2 – a^2}{2bc}right) = cos ^{-1}left( dfrac{4^2 + 5^2 – 6^2}{2 times 4 times 5}right) = 82.82°$

Save your answers with

Gold Standard Education

Question 2: For the diagram below, find an expression for the area of the triangle in terms of $a$ .

[2 marks]

$text{Area} = dfrac{1}{2} times 1.5a times 2a times sin 70° = 1.41a^{2}$

Save your answers with

Gold Standard Education

Question 3: For the diagram below, find the values of $alpha$ , $beta$ and $x$ .

[5 marks]

First of all, we have the unmarked angle in the triangle as $180° – 120° = 60°$ .

By using the sine rule, we have the equation

$dfrac{15}{sin 60°} = dfrac{10}{sin alpha}$

giving

$alpha = 35.26°$

Since we have angles in a triangle summing to $180°$ , we have

$beta = 180° – (60° + 35.26°) = 84.74°$

By extension,

$dfrac{15}{sin 60°} = dfrac{x}{sin beta}$

$x = 17.25text{ cm (to }2text{ dp)}$

Save your answers with

Gold Standard Education

Additional Resources

Exam Tips Cheat Sheet

A Level

Open

Formula Booklet

A Level

Open

Specification Points Covered

E1 – Understand and use the definitions of sine, cosine and tangent for all arguments; the sine and cosine rules; the area of a triangle in the form $dfrac{1}{2}absin{C}$
