Vector Calculations

Being able to use vectors in calculations is a key skill in A-Level, this section will cover the following areas of vector calculations:

Finding vector magnitudes using Pythagoras’ theorem
Resolving vectors into component form
Finding the distance between points using a vector’s magnitude
Using the cosine rule to find the angle between two vectors

Make sure you are happy with the following topics before continuing.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

5

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Finding Vector Magnitudes Using Pythagoras’ Theorem

Notation: The magnitude of vector $boldsymbol{a}$ is written as $|boldsymbol{a}|$ , similarly the magnitude of $overrightarrow{AB}$ is written as $|overrightarrow{AB}|$ .

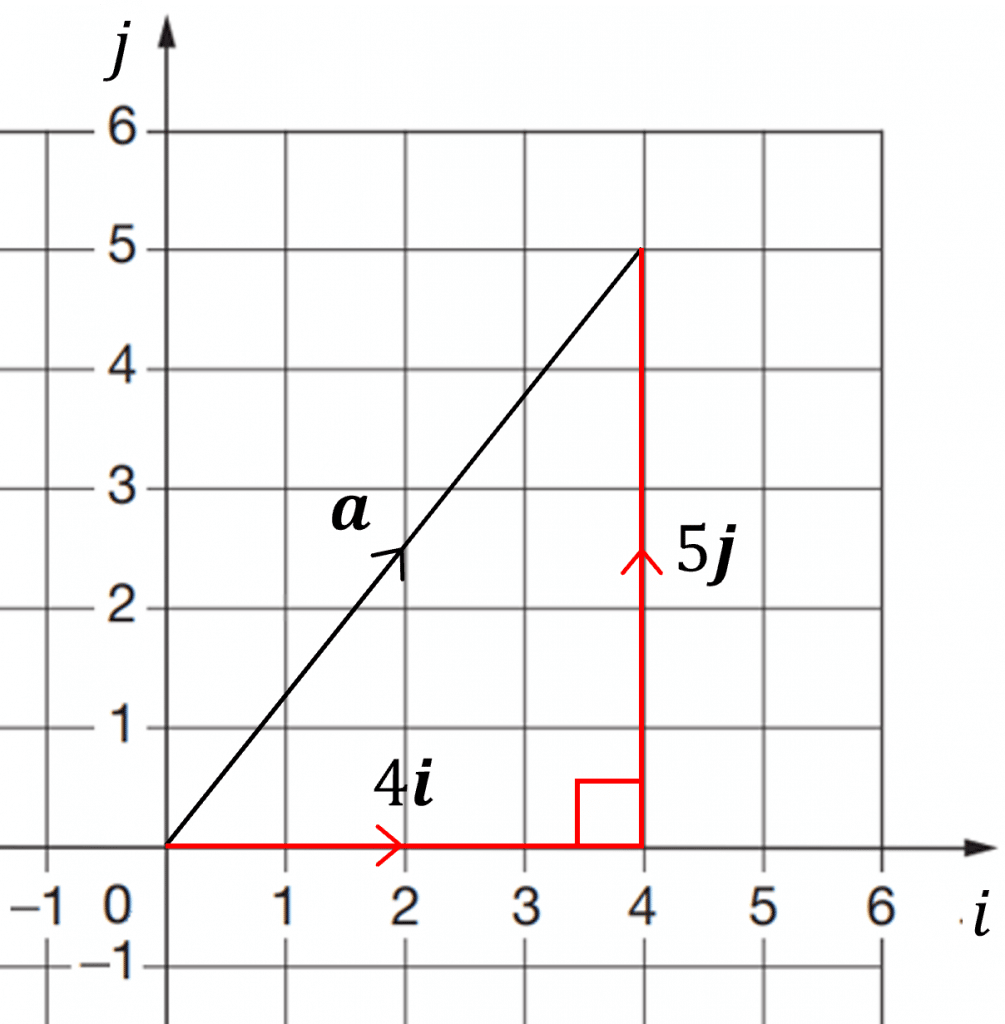

As shown on the image on the right, the $boldsymbol{i}$ and $boldsymbol{j}$ components of a vector create a right-angled triangle, this means you can use Pythagoras’ theorem to find the magnitude (length) of the vector.

Using Pythagoras’ theorem we can calculate the magnitude of vector $boldsymbol{a}$ :

$|boldsymbol{a}|=sqrt{4^2+5^2}=sqrt{41}$

Sometimes you may be required to find a unit vector in the direction of a particular vector, which can be found using:

Unit vector in the direction of a vector $boldsymbol{a}=dfrac{boldsymbol{a}}{|boldsymbol{a}|}$

As stated in position vectors, a unit vector has a magnitude of $1$

Example: Find the unit vector in the direction of $boldsymbol{m}=-3boldsymbol{i}+6boldsymbol{j}$

We first need to find the magnitude of $boldsymbol{m}$ :

$|boldsymbol{m}|=sqrt{(-3)^2+6^2}=sqrt{9+36}=3sqrt{5}$

Therefore, the unit vector in the direction of $boldsymbol{m}$ is:

$dfrac{boldsymbol{m}}{|boldsymbol{m}|}=dfrac{boldsymbol{m}}{3sqrt{5}}=dfrac{1}{3sqrt{5}}(-3boldsymbol{i}+6boldsymbol{j})$

Resolving Vectors into Component Form

When calculating with vectors it is easier to work with them when they are separated into $boldsymbol{i}$ and $boldsymbol{j}$ vectors, allowing you to work with one component at a time.

Splitting a vector into components is called resolving the vector, which can be done using both trigonometry and Pythagoras’ theorem.

Example: An object is travelling at $11text{ ms}^{-1}$ at an angle of $38degree$ to the horizontal.

Find the horizontal $(boldsymbol{i})$ and vertical $(boldsymbol{j})$ components of the object’s velocity, $boldsymbol{v}$ .

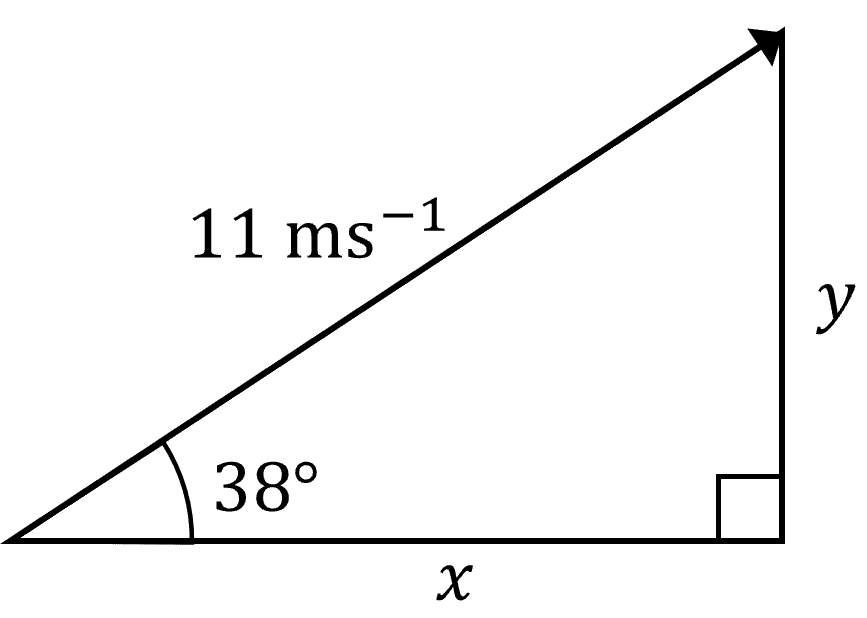

It is often easier to draw a diagram and make a right angled triangle for the problem:

We can then use trigonometry to find $x$ and $y$ :

$cos{38degree}=dfrac{x}{11} rArr x=11cos{38degree}$

$sin{38degree}=dfrac{y}{11} rArr y=11sin{38degree}$

Thus,

$begin{aligned} boldsymbol{v}&=(11cos{38degree}boldsymbol{i}+11sin{38degree}boldsymbol{j})text{ ms}^{-1} &=(8.67boldsymbol{i}+6.77boldsymbol{j})text{ ms}^{-1} (2text{ dp}) end{aligned}$

Finding the Distance Between Points Using a Vector’s Magnitude

Calculating the distance between two points is fairly straight forward, you need to find the vector between them and then calculate its magnitude using Pythagoras’ theorem.

Example: The position vectors of points $K$ and $L$ are $6boldsymbol{i}-2boldsymbol{j}$ and $-3boldsymbol{i}+5boldsymbol{j}$ respectively.

Find the distance between the points $K$ and $L$ , giving your answer to $2$ decimal places.

First, we need to find the vector $overrightarrow{KL}$

$overrightarrow{KL}=-3boldsymbol{i}+5boldsymbol{j}-(6boldsymbol{i}-2boldsymbol{j})=-9boldsymbol{i}+7boldsymbol{j}$

Then calculate the magnitude of $overrightarrow{KL}$ :

$|overrightarrow{KL}|=sqrt{(-9)^2+7^2}=sqrt{130}=11.40 , (2text{ dp})$

Using the Cosine Rule to Find the Angle Between Two Vectors

To find the angle between two vectors, $boldsymbol{a}$ and $boldsymbol{b}$ , you can construct a triangle with $boldsymbol{a}$ and $boldsymbol{b}$ as two of the sides and then calculate the magnitude of $overrightarrow{AB}$ for the remaining side. You can use the cosine rule to find the angle between the two vectors.

Example: $overrightarrow{OA}=4boldsymbol{i}+boldsymbol{j}$ and $overrightarrow{OB}=-2boldsymbol{i}+5boldsymbol{j}$

Find the angle $theta$ between the vectors $overrightarrow{OA}$ and $overrightarrow{OB}$ , giving your answer to $2$ decimal places.

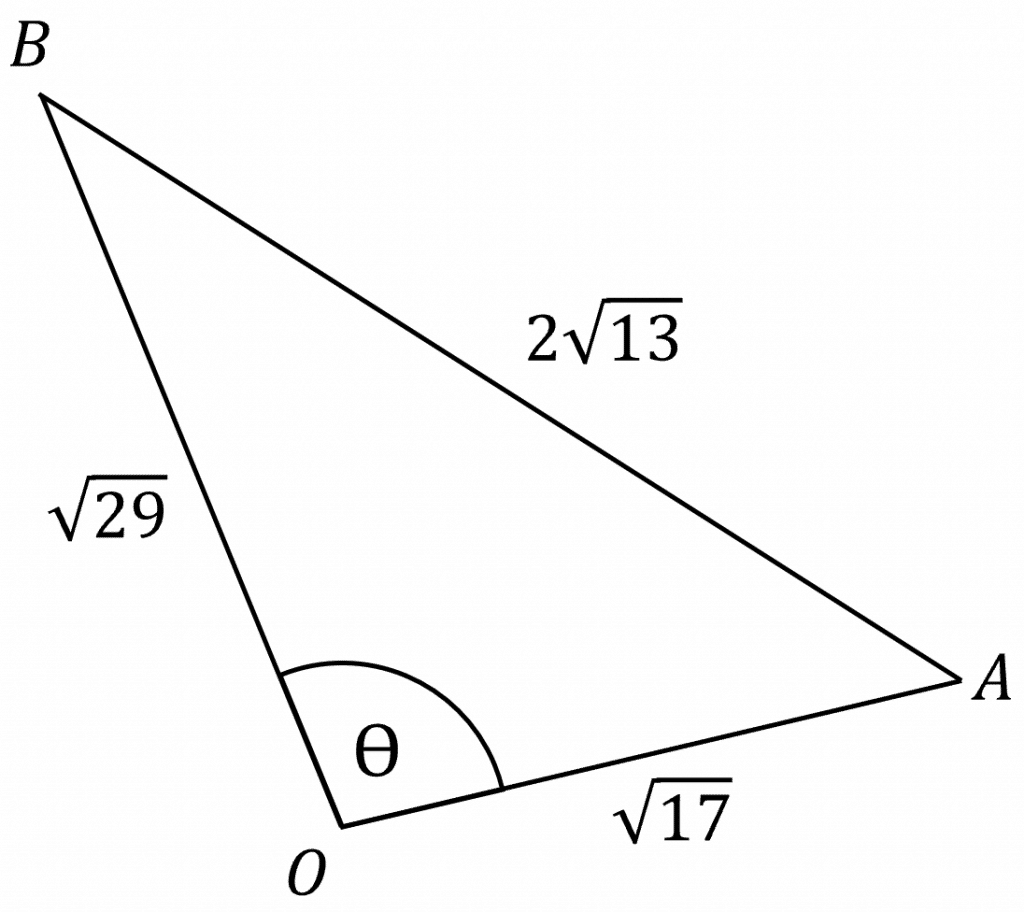

We first need to calculate the magnitudes of the vectors, $overrightarrow{OA},overrightarrow{OB}$ and $overrightarrow{AB}$ , so we can construct a triangle.

$|overrightarrow{OA}|=sqrt{4^2+1^2}=sqrt{17}$

$|overrightarrow{OB}|=sqrt{(-2)^2+5^2}=sqrt{29}$

$begin{aligned} |overrightarrow{AB}| &=|overrightarrow{OB}-overrightarrow{OA}| &=|-2boldsymbol{i}+5boldsymbol{j}-(4boldsymbol{i}+boldsymbol{j})| &=|-6boldsymbol{i}+4boldsymbol{j}| &=sqrt{(-6)^2+4^2}=2sqrt{13} end{aligned}$

Then using the cosine rule to find angle $theta$ :

$cos{theta}=dfrac{(sqrt{17})^2+(sqrt{29})^2-(2sqrt{13})^2}{2times sqrt{17} times sqrt{29}}=dfrac{-3}{sqrt{493}}$

$rArr theta=cos ^{-1} left(dfrac{-3}{sqrt{493}} right)=97.77 degree , (2text{ dp})$

Vector Calculations Example Questions

Question 1: Find the unit vector in the direction of $boldsymbol{t}=4boldsymbol{i}-5boldsymbol{j}$

[2 marks]

First find the magnitude of $boldsymbol{t}$ :

$|boldsymbol{t}|=sqrt{4^2+(-5)^2}=sqrt{16+25}=sqrt{41}$

Therefore, the unit vector is:

$dfrac{boldsymbol{t}}{|boldsymbol{t}|}=dfrac{boldsymbol{t}}{sqrt{41}}=dfrac{1}{sqrt{41}}(4boldsymbol{i}-5boldsymbol{j})$

Save your answers with

Gold Standard Education

Sign Up Now

Question 2: Point $S$ has position vector $dbinom{4}{-3}$ and point $T$ has position vector $dbinom{-5}{2}$ . Find the distance between points $S$ and $T$ , giving your answer to $2$ decimal places.

[2 marks]

First, we need to find the vector $overrightarrow{ST}$ between the points.

$overrightarrow{ST}=dbinom{-5}{2}-dbinom{4}{-3}=dbinom{-5-4}{2-(-3)}=dbinom{-9}{5}$

So, $|overrightarrow{ST}|=sqrt{(-9)^2+5^2}=sqrt{106}=10.30 , (2 text{ dp})$

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: A vector $boldsymbol{w}$ models the movement of an object. The object is travelling at a speed of $8text{ ms}^{-1}$ with direction of $25degree$ above the horizontal.

Write $boldsymbol{w}$ in component form, giving the coefficients of $boldsymbol{i}$ and $boldsymbol{j}$ to $2$ decimal places.

[2 marks]

It is first useful to draw a diagram of the vector $boldsymbol{w}$ , forming a right-angled triangle.

Now we can use trigonometry to find $x$ and $y$ :

$cos{25degree}=dfrac{x}{8} rArr x=8cos{25degree}$

$sin{25degree}=dfrac{y}{8} rArr y=8sin{25degree}$

So,

$begin{aligned} boldsymbol{w}&=8cos{25degree}boldsymbol{i}+8sin{25degree}boldsymbol{j} &=7.25boldsymbol{i}+3.38boldsymbol{j}end{aligned}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 4: The points $X$ , $Y$ and $Z$ form a triangle, and have position vectors $2boldsymbol{i}+3boldsymbol{j}$ , $-boldsymbol{i}+2boldsymbol{j}$ and $4boldsymbol{i}-2boldsymbol{j}$ respectively. Find the angle, $theta$ between vectors $overrightarrow{YZ}$ and $overrightarrow{ZX}$ , giving your answer to $2$ decimal places.
