3D Vectors

Working with 3D vectors is mostly similar to 2D vectors, however the calculations can be more complicated.

3D vectors introduces another unit vector, $boldsymbol{textcolor{blue}{k}}$ , which corresponds to the $textcolor{blue}{z}$ -axis.

Make sure you are happy with the following topics before continuing.

Product

A Level Maths Predicted Papers 2025

117

From: £19.99

The MME A level maths predicted papers are an excellent way to practise, using authentic exam style questions that are unique to our papers. Our examiners have studied A level maths past papers to develop predicted A level maths exam questions in an authentic exam format. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

A Level

A-A* A Level Maths Practice Papers

5

£19.99

The MME A-A* A level maths practice papers are excellent for those top achieving students to practise for their exams, using authentic exam style questions that are unique to our practice papers. Our content experts have studied A level maths past papers and specifications to develop specific A-A* A level maths exam questions in an authentic exam style. The profit from every pack is reinvested into making free content on MME, which benefits millions of learners across the country.

View Product

Unit Vectors in Three Dimensions

Three dimensions inevitably introduces a third axis, the $z$ -axis. We can visualise the $z$ axis by imagining that the $x$ -axis and $y$ -axis lie flat on a surface and then the $z$ -axis points upwards, as shown by the diagram on the right.

When working with vectors $boldsymbol{k}$ is the unit vector in the direction of the $z$ -axis.

Three dimensional vectors follow the same form as two dimensional vectors, they are written as: $xboldsymbol{i}+yboldsymbol{j}+zboldsymbol{k}=begin{pmatrix} x y z end{pmatrix}$

Addition, subtraction, multiplying with scalars and showing two vectors are parallel (Vector Basics) all work the same with 3D vectors as with 2D vectors.

Pythagoras in Three Dimensions

To find the distance of any 3D point from the origin we can use a variation of Pythagoras’ theorem:

Distance of point $(x,y,z)$ from the origin $=sqrt{x^2+y^2+z^2}$

Therefore, finding the magnitude of any 3D vector can be found in the same way as finding the magnitude of a 2D vector.

Example:

Find the magnitude of the vector $boldsymbol{s}=3boldsymbol{i}-5boldsymbol{j}+2boldsymbol{k}$ to $2$ decimal places.

$|boldsymbol{s}|=sqrt{3^2+(-5)^2+2^2}=sqrt{38}=6.16$ units $(2text{ dp})$

We can also use a Pythagoras-based formula to find the distance between two points in three dimensions:

Distance between points $(x_{1}, y_{1}, z_{1})$ and $(x_{2}, y_{2}, z_{2})$ is $sqrt{(x_{1}-x_{2})^2 +(y_{1}-y_{2})^2 +(z_{1}-z_{2})^2}$

Example:

The position vector of point $O$ is $begin{pmatrix} 4 6 -3 end{pmatrix}$ and the position vector of point $P$ is $begin{pmatrix} 1 -5 4 end{pmatrix}$ .

Find $|overrightarrow{OP}|$ to $2$ decimal places.

$|overrightarrow{OP}|=sqrt{(4-1)^2+(6-(-5))^2+((-3)-4)^2}=sqrt{9+121+49}=13.38$ units $(2 text{ dp})$

Example: Problems in 3D

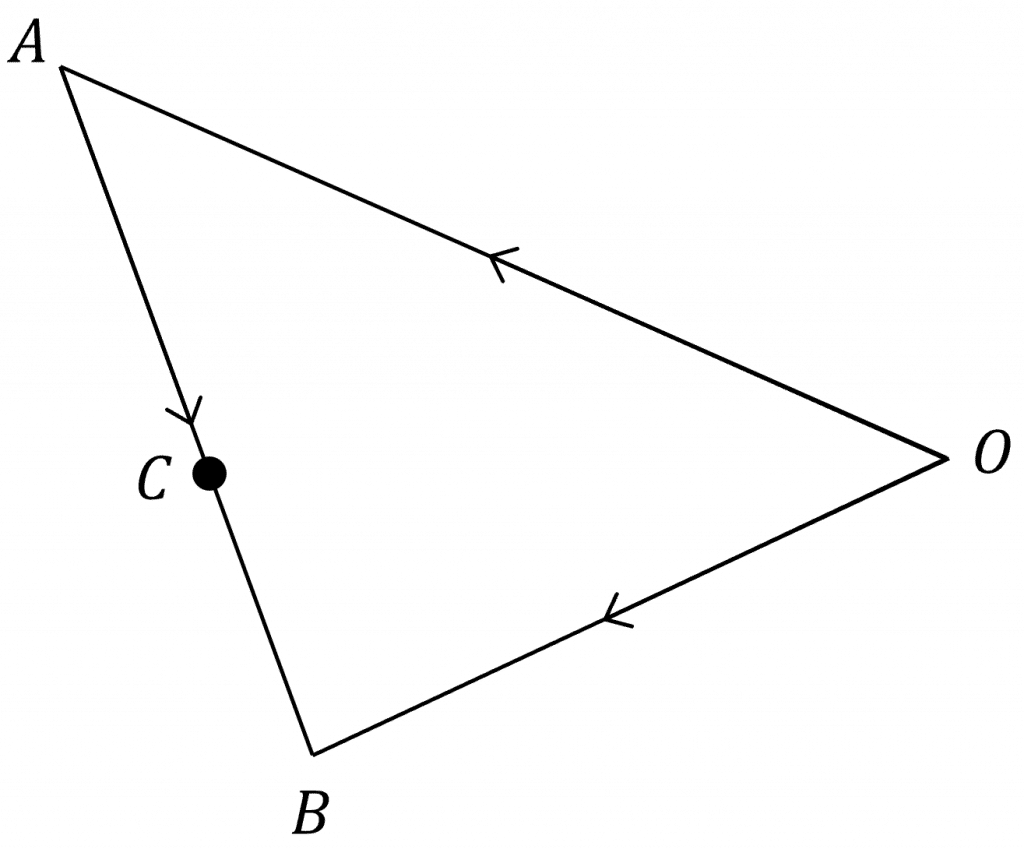

Point $A$ has a position vector of $-4boldsymbol{i}+3boldsymbol{j}+6boldsymbol{k}$ and point $B$ has a position vector of $2boldsymbol{i}-5boldsymbol{j}+3boldsymbol{k}$ . Point $C$ lies on the vector line $AB$ and divides the line in the ratio $4:3$ . Find the position vector of $C$ .

It is often helpful to split 3D problems into multiple parts and draw 2D diagrams to help you visualise them.

1) We first need to find the vector $overrightarrow{AB}$ :

$begin{aligned} overrightarrow{AB} &= overrightarrow{OB}-overrightarrow{OA} &= (2-(-4))boldsymbol{i}+(-5-3)boldsymbol{j}+(3-6)boldsymbol{k} &=6boldsymbol{i}-8boldsymbol{j}-3boldsymbol{k} end{aligned}$

2) We are told that $C$ divides $overrightarrow{AB}$ in the ratio $4:3$ , so $C$ is $dfrac{4}{7}$ of the way along $overrightarrow{AB}$ .

Thus, $overrightarrow{AC}=dfrac{4}{7}overrightarrow{AB}=dfrac{4}{7}(6boldsymbol{i}-8boldsymbol{j}-3boldsymbol{k})=dfrac{24}{7}boldsymbol{i}-dfrac{32}{7}boldsymbol{j}-dfrac{12}{7}boldsymbol{k}$

3) Finally, to find the position vector of $C$ we need to add the vector $overrightarrow{AC}$ to $overrightarrow{OA}$ .

$begin{aligned} overrightarrow{OC}=overrightarrow{OA}+overrightarrow{AC} &=(-4boldsymbol{i}+3boldsymbol{j}+6boldsymbol{k})+(dfrac{24}{7}boldsymbol{i}-dfrac{32}{7}boldsymbol{j}-dfrac{12}{7}boldsymbol{k}) &= -dfrac{4}{7}boldsymbol{i}-dfrac{11}{7}boldsymbol{j}+dfrac{30}{7}boldsymbol{k} end{aligned}$

3D Vectors Example Questions

Question 1: Find the magnitudes of the following vectors, give your answer to $2$ decimal places.

a) $overrightarrow{OA}=5boldsymbol{i}-2boldsymbol{j}+boldsymbol{k}$

b) $overrightarrow{OB}=-2boldsymbol{i}-6boldsymbol{j}+7boldsymbol{k}$

c) $overrightarrow{OC}=begin{pmatrix} 4 9 -3 end{pmatrix}$

[3 marks]

Using a variation of Pythagoras’ theorem:

a) $|overrightarrow{OA}|=sqrt{5^2+(-2)^2+1^2}=sqrt{30}=5.48$ units $(2 text{ dp})$

b) $|overrightarrow{OB}|=sqrt{(-2)^2+(-6)^2+7^2}=sqrt{89}=9.43$ units $(2 text{ dp})$

c) $|overrightarrow{OC}|=sqrt{4^2+9^2+(-3)^2}=sqrt{106}=10.30$ units $(2 text{ dp})$

Save your answers with

Gold Standard Education

Sign Up Now

Question 2:

$boldsymbol{x}=3boldsymbol{i}+8boldsymbol{j}-4boldsymbol{k}$

$boldsymbol{y}=-2boldsymbol{i}-7boldsymbol{j}-boldsymbol{k}$

$boldsymbol{z}=6boldsymbol{i}+9boldsymbol{j}+3boldsymbol{k}$

Find $3boldsymbol{y}+2boldsymbol{z}-boldsymbol{x}$

[2 marks]

$begin{aligned} 3boldsymbol{y}+2boldsymbol{z}-boldsymbol{x} &=3(-2boldsymbol{i}-7boldsymbol{j}-boldsymbol{k})+2(6boldsymbol{i}+9boldsymbol{j}+3boldsymbol{k})-(3boldsymbol{i}+8boldsymbol{j}-4boldsymbol{k}) &=(-6+12-3)boldsymbol{i}+(-21+18-8)boldsymbol{j}+(-3+6+4)boldsymbol{k} &=3boldsymbol{i}-11boldsymbol{j}+7boldsymbol{k} end{aligned}$

Save your answers with

Gold Standard Education

Sign Up Now

Question 3: Points $L$ , $M$ and $N$ have position vectors $begin{pmatrix} 1 5 -2 end{pmatrix}$ , $begin{pmatrix} 3 -3 -1 end{pmatrix}$ and $begin{pmatrix} 5 7 -5 end{pmatrix}$ respectively.

Show that $overrightarrow{OL}$ is parallel to $overrightarrow{MN}$ .

[2 marks]

We need to first find $overrightarrow{MN}$ :

$overrightarrow{MN}=overrightarrow{ON}-overrightarrow{OM}=begin{pmatrix} 5 7 -5 end{pmatrix}-begin{pmatrix} 3 -3 -1 end{pmatrix}=begin{pmatrix} 2 10 -4 end{pmatrix}$

We can see that $begin{pmatrix} 2 10 -4 end{pmatrix} times dfrac{1}{2}=begin{pmatrix} 1 5 -2 end{pmatrix}$

Thus, $2overrightarrow{OL}=overrightarrow{MN}$ , so $overrightarrow{OL}$ is parallel to $overrightarrow{MN}$ because they are scalar multiples of each other.

Save your answers with

Gold Standard Education

Sign Up Now

Question 4: Point $A$ has a position vector of $2boldsymbol{i}-6boldsymbol{j}+5boldsymbol{k}$ and point $B$ has a position vector of $boldsymbol{i}-4boldsymbol{j}-3boldsymbol{k}$ .

The point $X$ lies on the line $AB$ and divides the line in the ratio $3:1$ .

Calculate the distance of $X$ from the origin, giving your answer to $2$ decimal places.

[4 marks]

First, we need to find the position vector of $overrightarrow{AB}$ :

$overrightarrow{AB}=overrightarrow{OB}-overrightarrow{OA}=(boldsymbol{i}-4boldsymbol{j}-3boldsymbol{k})-(2boldsymbol{i}-6boldsymbol{j}+5boldsymbol{k})=-boldsymbol{i}+2boldsymbol{j}-8boldsymbol{k}$

We know that the point $X$ divides the line $AB$ in the ratio $3:1$ , so $overrightarrow{AX}=dfrac{3}{4}overrightarrow{AB}=-dfrac{3}{4}boldsymbol{i}+dfrac{3}{2}boldsymbol{j}-6boldsymbol{k}$

Then to find the distance between the point $X$ and the origin, we need to find the position vector of $overrightarrow{OX}$ :

$begin{aligned}overrightarrow{OX}=overrightarrow{OA}+overrightarrow{AX} &= (2boldsymbol{i}-6boldsymbol{j}+5boldsymbol{k})+(-dfrac{3}{4}boldsymbol{i}+dfrac{3}{2}boldsymbol{j}-6boldsymbol{k}) &=dfrac{5}{4}boldsymbol{i}-dfrac{9}{2}boldsymbol{j}-boldsymbol{k} end{aligned}$
